Wireless Electric-Hydraulic Pump

Wireless Electric-Hydraulic Pump — Uni-body pump housing, compact and no leakage

Hydraulic Pumps

Product categoryHydraulic Pumps

Model rangeWA1 – WK4

ReservoirCapacity(L)7.6 – 4

MotorSize(KW)1.1 – /

Ask an Engineer

Overview

Uni-body pump housing, compact and no leakage Eight plunger pistons for 3 stage flow design, excellent flow/pressure performance

Features

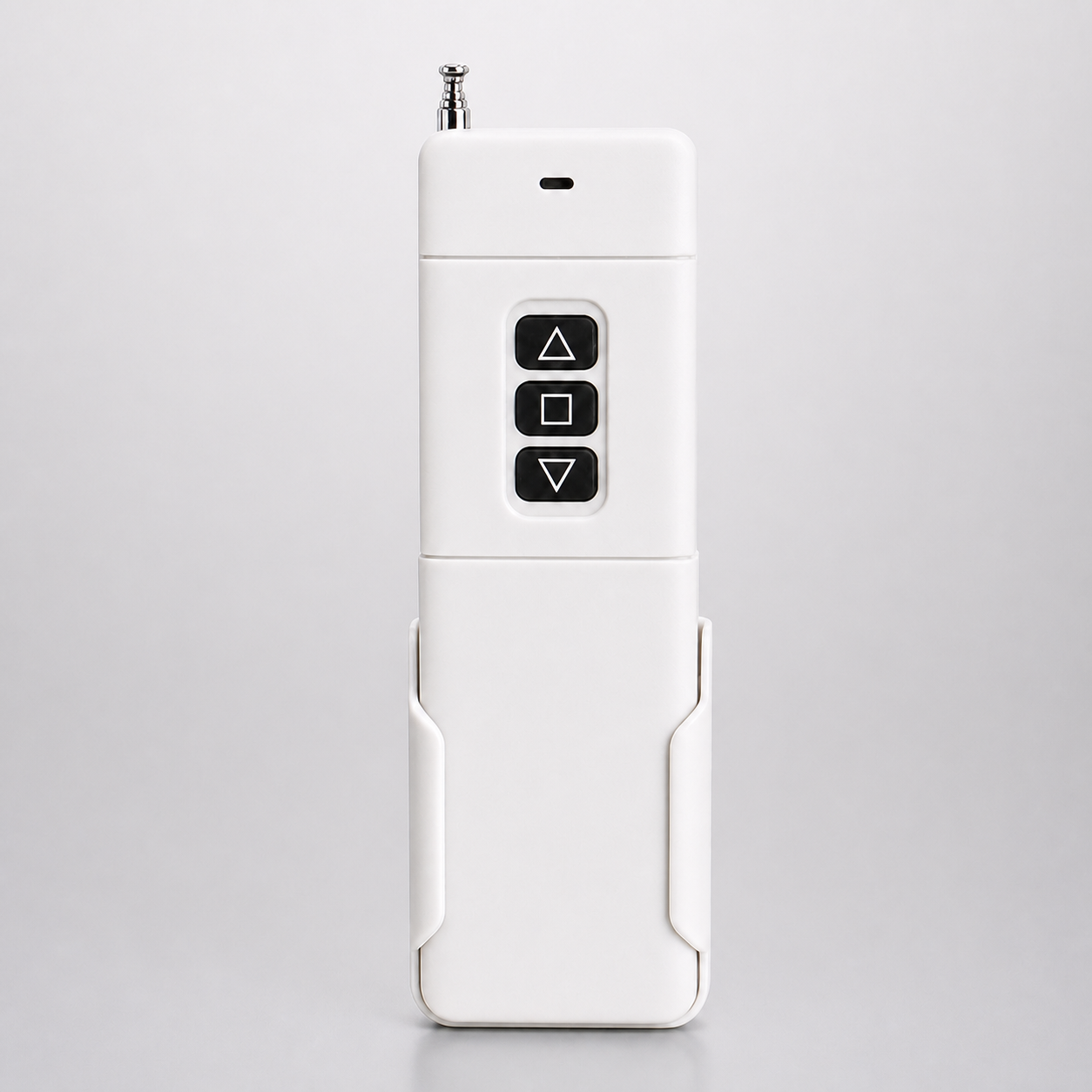

Wireless remote control pendant with strong signal, can be operated freely and conveniently within 100 meters
Only need one man to operate hydraulic pump and hydraulic wrench simultaneously, more convenient
Can be equipped with pointer or digital pressure gauge
Auto code matching, without corresponding the pendant and pump one by one, easy to use and replace

Specifications

Product categoryHydraulic Pumps

Model rangeWA1 – WK4

ReservoirCapacity(L)7.6 – 4

MotorSize(KW)1.1 – /

Supply220V/50Hz/singlephase

Output flow (L/min)8.0@0-6.5MPa,1.8@6.5-32MPa,0.85@32-70MPa

Max.WorkingPressure(MPa)70

Size(mm)A× B×C×D375×300×410×155

EffectiveControlDistance(m)20

Technical Data

Technical table 1
Model | ReservoirCapacity(L) | MotorSize(KW) | Supply | Output flow (L/min) | Max.WorkingPressure(MPa) | Size(mm)A× B×C×D | EffectiveControlDistance(m) | Weight(kg) | PortNo. | AutoHeat
WA1 | 7.6 | 1.1 | 220V/50Hz/singlephase | 8.0@0-6.5MPa,1.8@6.5-32MPa,0.85@32-70MPa | 70 | 375×300×410×155 | 20 | 25 | 2 | /
WA2 | 2 | Yes
WA3 | 4 | /
WA4 | 4 | Yes
WK1 | 7.6 | 1.1 | 220V/50Hz/singlephase | 8.0@0-6.5MPa,1.8@6.5-32MPa,0.85@32-70MPa | 70 | 375×300×410×155 | 20 | 25 | 2 | /
WK2 | 2 | Yes
WK3 | 4 | /
WK4 | 4 | Yes
