PMT Series Hydraulic Torque Wrench

1. Coarse-toothed ratchet and pawl，sufficient safe redundancy at full load

Hydraulic Torque Wrenches

Product categoryHydraulic Torque Wrenches

Model rangePMT-0.7, PMT- 1, PMT-3, PMT-5, PMT- 10

Square Drive size(in)3/4 – 1-1/2

Min. Torque(Nm)102 – 1561

Ask an Engineer

Overview

1. Coarse-toothed ratchet and pawl，sufficient safe redundancy at full load 2. The new coaxial reaction arm design reduces the offload bending moment, can provide more accurate actual torque 3. Can be equipped with rear reaction lever for higher efficiency, compatible with standard and stretch sleeve. 4. Constructed from higher strength materials for stronger, more wear-resistant and highly repeatable precision performance 5.Compact body with 360°×180° hose swivel, applicable to a variety of applications 6.Dual reaction lever function, accommodates both coaxial reaction lever and rear reaction lever.

Features

Coarse-toothed ratchet and pawl，sufficient safe redundancy at full load

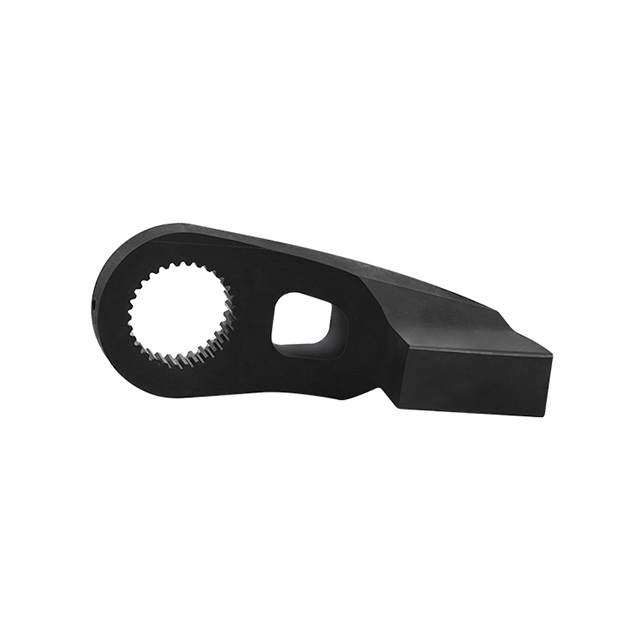

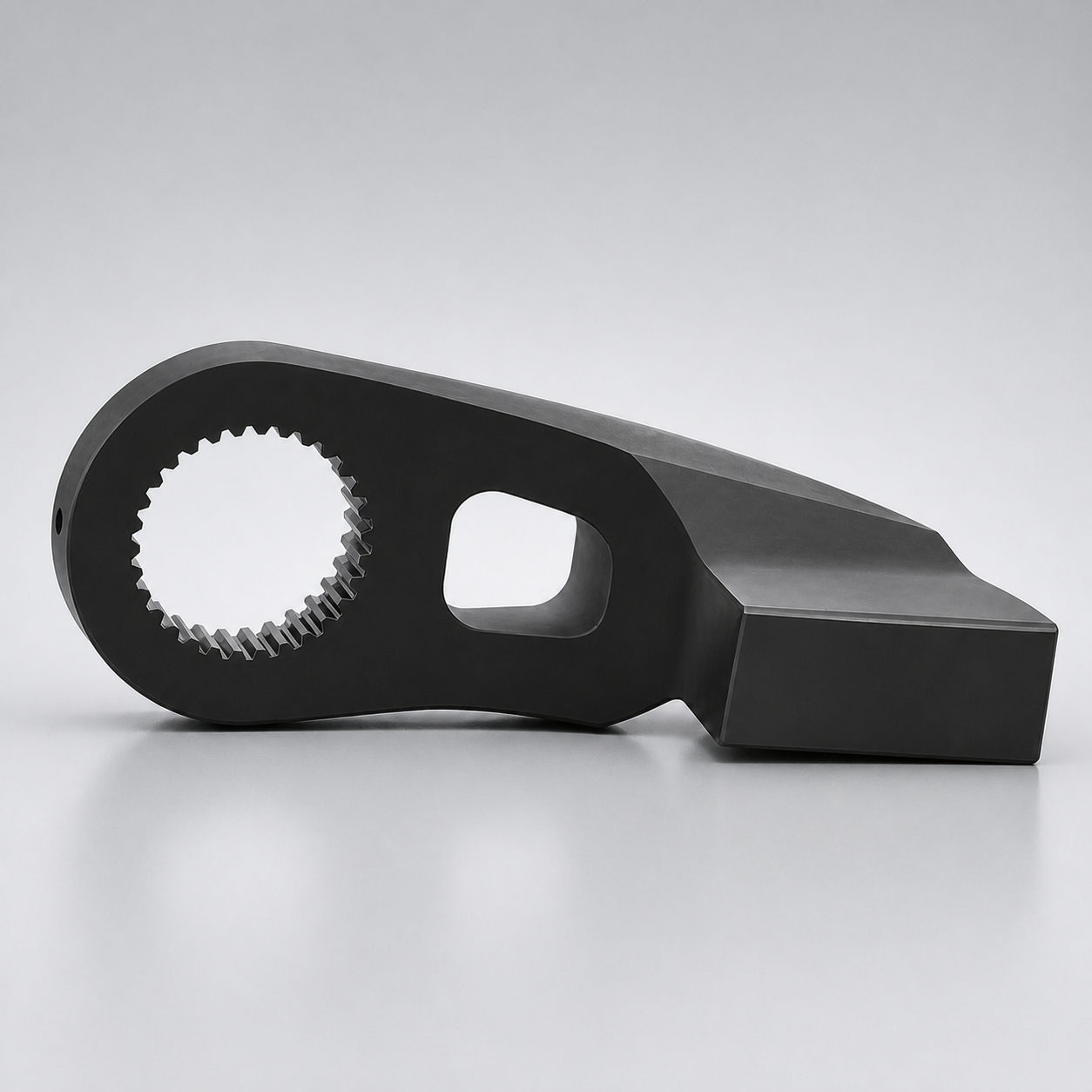

The new coaxial reaction arm design reduces the offload bending moment, can provide more accurate actual torque

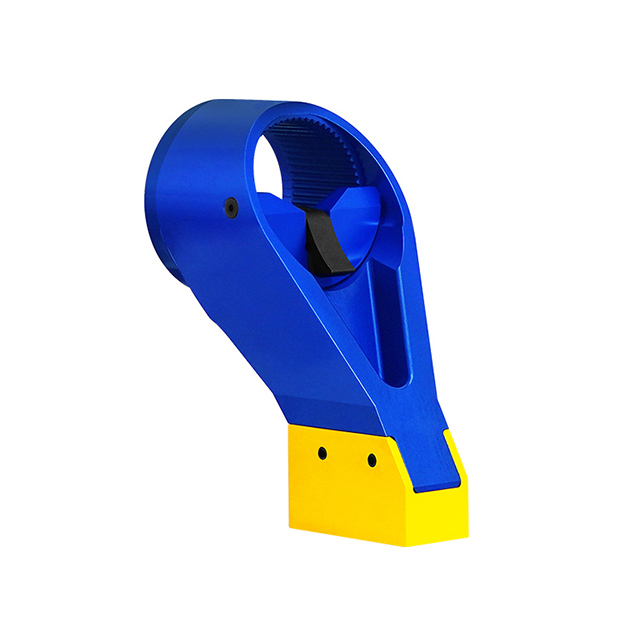

Can be equipped with rear reaction lever for higher efficiency, compatible with standard and stretch sleeve.
Constructed from higher strength materials for stronger, more wear-resistant and highly repeatable precision performance

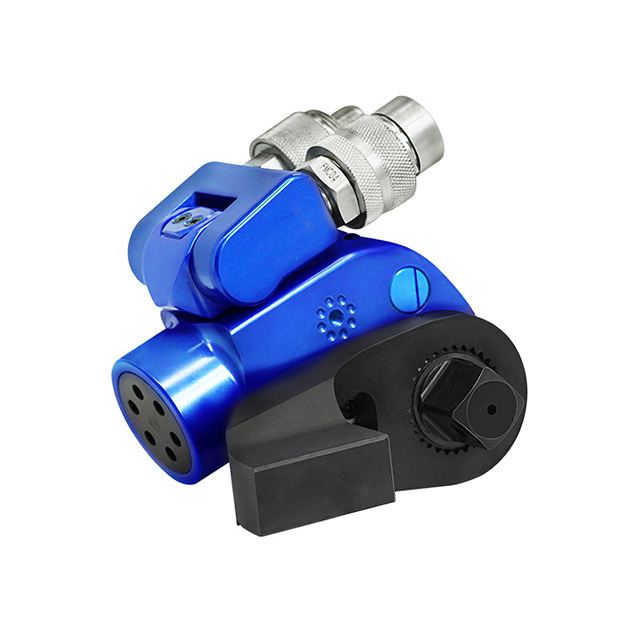

Compact body with 360°×180° hose swivel, applicable to a variety of applications
Dual reaction lever function, accommodates both coaxial reaction lever and rear reaction lever.

Specifications

Product categoryHydraulic Torque Wrenches

Model rangePMT-0.7, PMT- 1, PMT-3, PMT-5, PMT- 10

Square Drive size(in)3/4 – 1-1/2

Min. Torque(Nm)102 – 1561

Max. Torque(Nm)1022 – 15610

Output accuracy±3%

Repeat Accuracy2%

weight(Kg)2.1 – 11.3

H(mm)111 – 297

W(mm)45.3 – 110

Technical Data

Technical table 1
Model | Square Drive size(in) | Min. Torque(Nm) | Max. Torque(Nm) | Output accuracy | Repeat Accuracy | weight(Kg)
PMT-0.7 | 3/4 | 102 | 1022 | ±3% | 2% | 2.1
PMT- 1 | 3/4 | 181 | 1816 | ±3% | 2% | 3.1
PMT-3 | 1 | 437 | 4377 | ±3% | 2% | 3.4
PMT-5 | 1-1/2 | 716 | 7165 | ±3% | 2% | 8.4
PMT- 10 | 1-1/2 | 1561 | 15610 | ±3% | 2% | 11.3

Technical table 2
Model | H(mm) | W(mm) | L(mm) | R(mm)
PMT-0.7 | 111 | 45.3 | 102.8 | 25
PMT- 1 | 162 | 55 | 131 | 30
PMT-3 | 206 | 74 | 169 | 38
PMT-5 | 235 | 86 | 204 | 47
PMT- 10 | 297 | 110 | 255 | 60
