Ultra-High Pressure Pumps

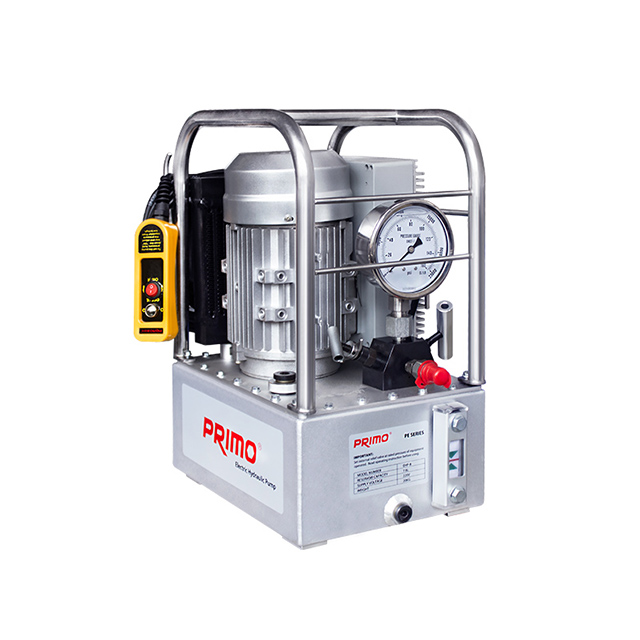

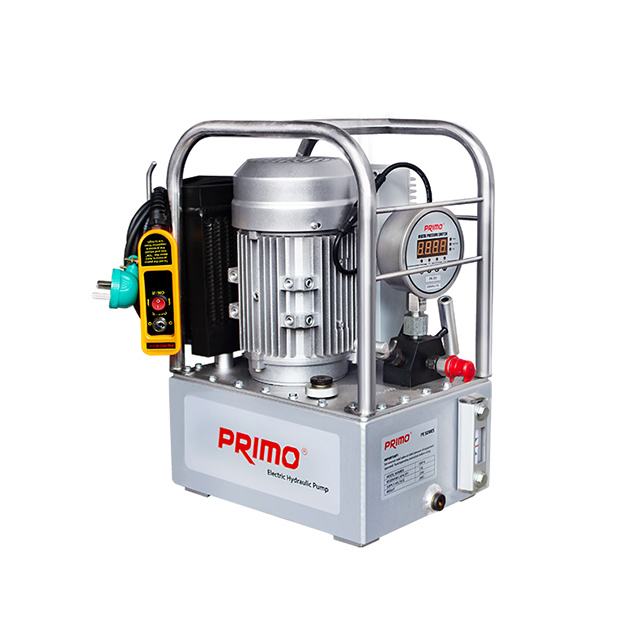

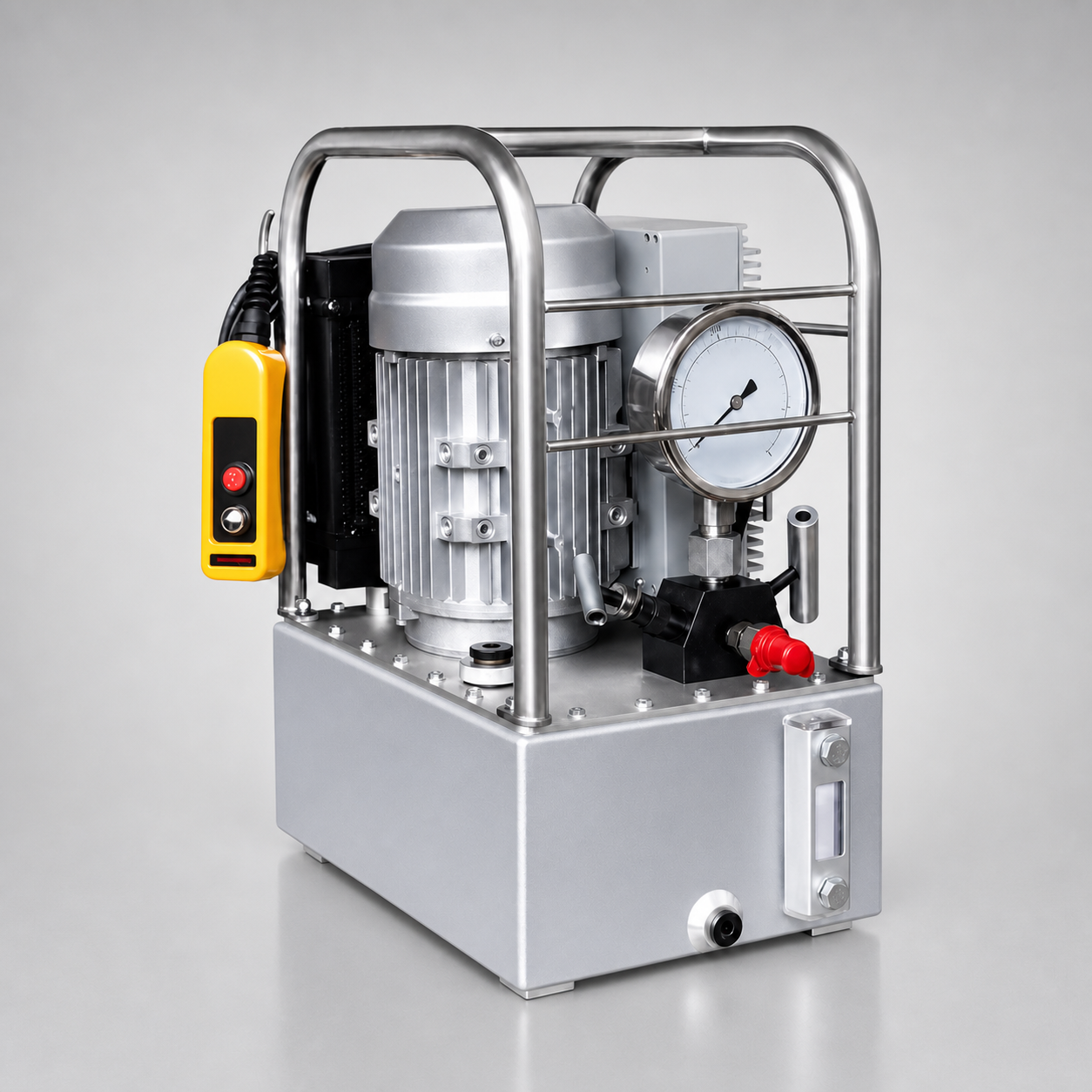

Ultra-Hydraulic Pressure Electric Pump

Ultra-Hydraulic Pressure Electric Pump

Ultra-Hydraulic Pressure Electric Pump

Two stage piston pump,compact design,robust and reliable

Ultra-High Pressure Pumps

Product categoryUltra-High Pressure Pumps

Model rangeEHP-8, EHP-8D

Reservoir(L) – Double acting

Power(KN) – 1.1

Ask an Engineer

Overview

Two stage piston pump,compact design,robust and reliable 1 KW electric motor with great power and large flow Remote control pendant, safe and easy to operate

Features

Two stage piston pump,compact design,robust and reliable
1 KW electric motor with great power and large flow
Remote control pendant, safe and easy to operate
Easy to set target pressure, capable of pressure retention
Both Single and double acting available,applicable to various operation .
High performance radiator ensures continuous operation
With safety protection function, pump station automaticly stop when hydraulic system instantaneous pressure loss, to avoid the rupture of parts flying out caused by the secondary pressurization.

Specifications

Product categoryUltra-High Pressure Pumps

Model rangeEHP-8, EHP-8D

Reservoir(L) – Double acting

Power(KN) – 1.1

Supply220V/50Hz/Single-phase

Max.Working Pressure(MPa)150

Size(mm) – 375 ×300 ×410

Control Line(m) – 6

Flow(L/min) – 2@5MPa,0.3@150Mpa

Technical Data

Technical table 1
Model | Reservoir | Power | Supply | Max.Working Pressure(MPa) | Size | Control Line | Flow | Weight | Mode of Action
(L) | (KN) | (mm) | (m) | (L/min) | (kg)
EHP-8 | 7.6 | 1.1 | 220V/50Hz/Single-phase | 150 | 375 ×300 ×410 | 6 | 2@5MPa,0.3@150Mpa | 20 | single acting
EHP-8D | Double acting

FAQ

Which model should I select?

Provide fastener size, target torque or preload, available clearance and the application environment.

Can the configuration be customized?

Yes. Tooling, reaction arrangements, hoses, pumps and controls can be matched to the project.
