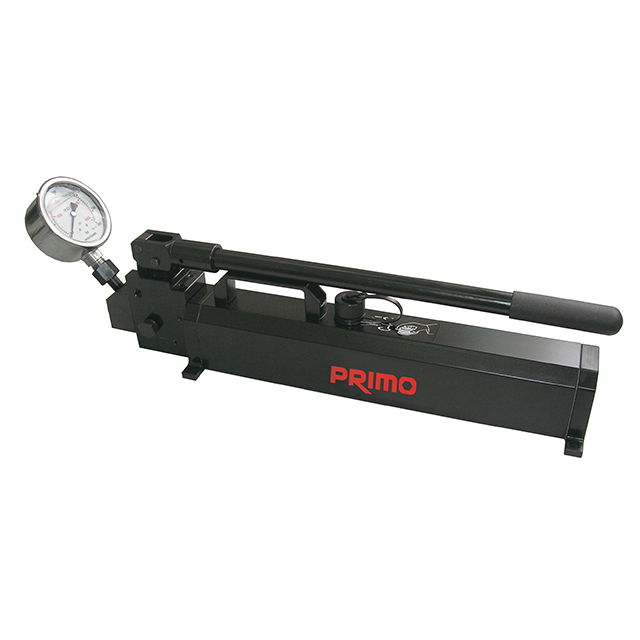

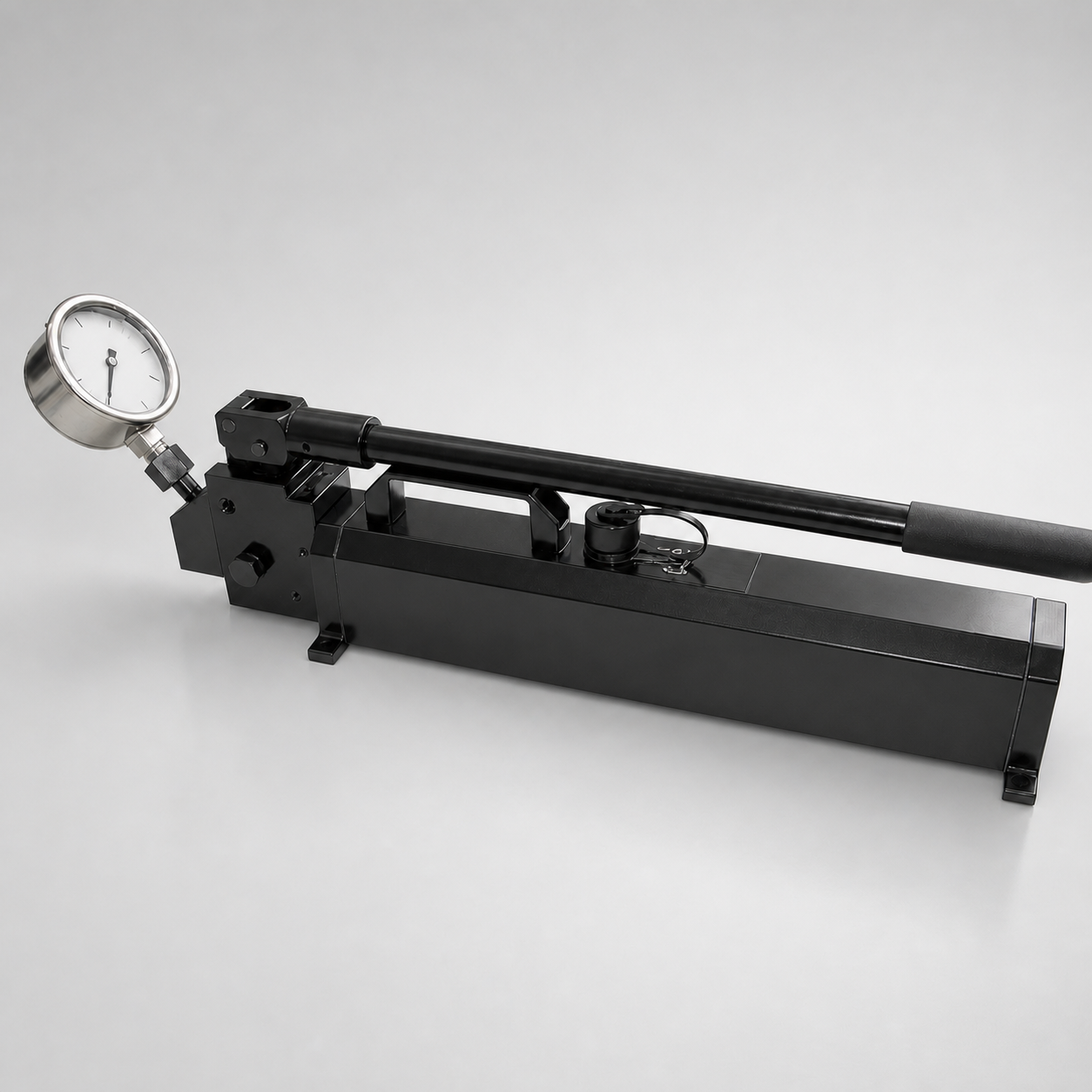

Ultra-High Pressure Manual Pump

Constructed from aviation material, light weight and high satety

Ultra-High Pressure Pumps

Product categoryUltra-High Pressure Pumps

Model rangeLow – PHP-282

Usable Oil(L)High – 2

Working Pressure(MPa)Low – 8

Ask an Engineer

Overview

Constructed from aviation material, light weight and high satety Built-in double pressure safety valve to prevent pressure overload Built-in energy storage mechanism to ensure the pressure stability

Features

Constructed from aviation material, light weight and high satety
Built-in double pressure safety valve to prevent pressure overload
Built-in energy storage mechanism to ensure the pressure stability
Special designed tank cap to seal or breathe to balance the pressure inside and outside the tank
Capable of vertical working state when the pump head is down
Two piston design, low pressure output large flow, high pressure output low flow, even at the highest working pressure, the handle force is very small

Specifications

Product categoryUltra-High Pressure Pumps

Model rangeLow – PHP-282

Usable Oil(L)High – 2

Working Pressure(MPa)Low – 8

Oil Volumes Per Stroke(ml)High – 280

Size(mm)13.5

Oil PortThread(in)1.1 – 0.56

Weight(Kg)700 × 130 × 190 – 640 × 180 ×220

Technical Data

Technical table 1
Model | Usable Oil(L) | Working Pressure(MPa) | Oil Volumes Per Stroke(ml) | Size(mm) | Oil PortThread(in) | Weight(Kg)
Low | High | Low | High
PHP- 161 | 1.2 | 2 | 160 | 13.5 | 1.1 | 700 × 130 × 190 | G 1/4 | 5
PHP- 162 | 2 | 2 | 160 | 13.5 | 1.1 | 640 × 180 ×220 | G 1/4 | 6
PHP-201 | 1.2 | 2 | 200 | 13.5 | 1.1 | 700 × 130 × 190 | G 1/4 | 5
PHP-202 | 2 | 2 | 200 | 13.5 | 1.1 | 640 × 180 ×220 | G 1/4 | 6
PHP-251 | 1.2 | 8 | 250 | 13.5 | 0.56 | 700 × 130 × 190 | G 1/4 | 5
PHP-252 | 2 | 8 | 250 | 13.5 | 0.56 | 640 × 180 ×220 | G 1/4 | 6
PHP-281 | 1.2 | 8 | 280 | 13.5 | 0.56 | 700 × 130 × 190 | G 1/4 | 5
PHP-282 | 2 | 8 | 280 | 13.5 | 0.56 | 640 × 180 ×220 | G 1/4 | 6
