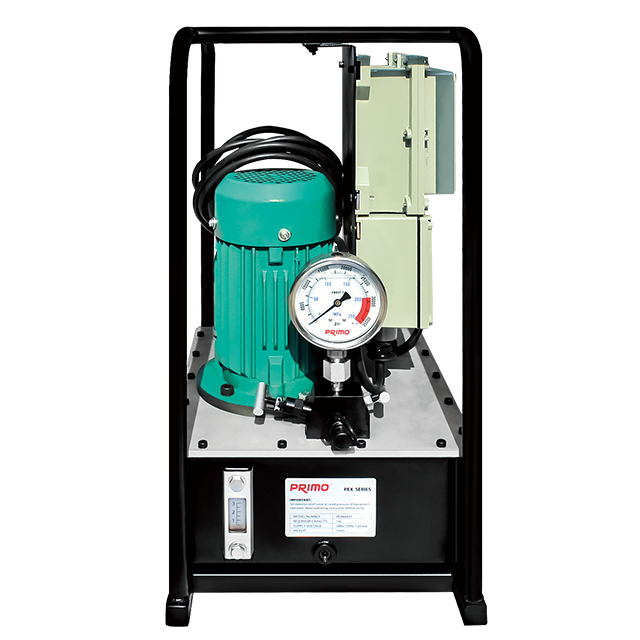

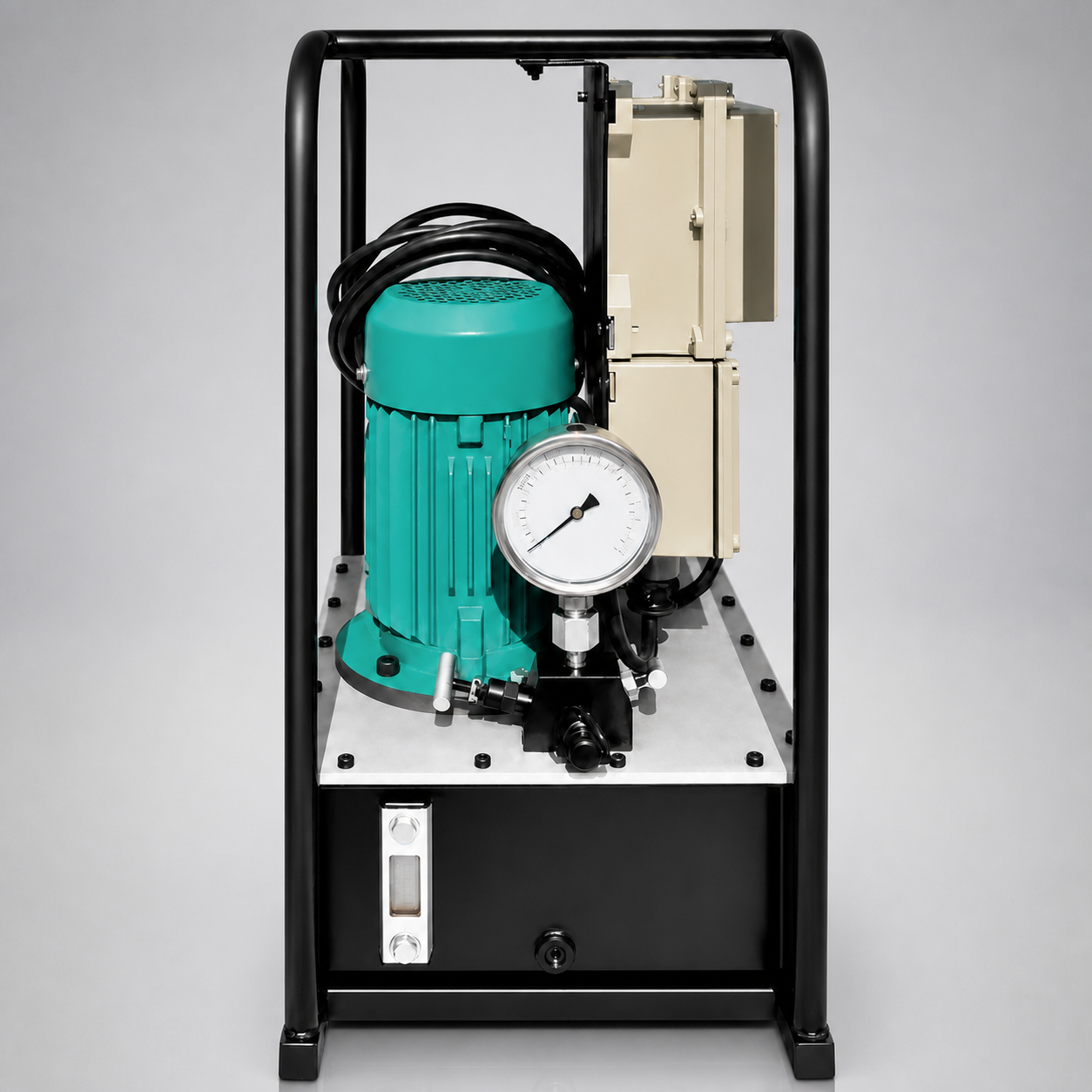

Ultra-High Pressure Explosion Proof Electric Pump

Ultra-High Pressure Explosion Proof Electric Pump

Ultra-High Pressure Explosion Proof Electric Pump

EX dⅡBT4 three phase motor, safety, applicable to explosive environment. Large torque output and high efficiency

Ultra-High Pressure Pumps

Product categoryUltra-High Pressure Pumps

Model rangeEXP- 14

Reservoir (L)14

Power(KW)1.1

Ask an Engineer

Overview

EX dⅡBT4 three phase motor, safety, applicable to explosive environment. Large torque output and high efficiency Electric control system adopts EX dⅡBT4 explosion-proof electromagnetic starter Advanced double stage piston pump with stable pressure

Features

EX dⅡBT4 three phase motor, safety, applicable to explosive environment. Large torque output and high efficiency
Electric control system adopts EX dⅡBT4 explosion-proof electromagnetic starter
Advanced double stage piston pump with stable pressure
Integrated pump oil circuit system, compact and durable

Specifications

Product categoryUltra-High Pressure Pumps

Model rangeEXP- 14

Reservoir (L)14

Power(KW)1.1

Supply380V/50Hz/three phase

Max.Working Pressure(MPa)150

Size A×B×C(mm)430 ×330 ×660

Flow(L/min)2@5MPa,0.3@150MPa

Weight(kg)53

Technical Data

Technical table 1
Model | Reservoir (L) | Power(KW) | Supply | Max.Working Pressure(MPa) | Size A×B×C(mm) | Flow(L/min) | Weight(kg)
EXP- 14 | 14 | 1.1 | 380V/50Hz/three phase | 150 | 430 ×330 ×660 | 2@5MPa,0.3@150MPa | 53

FAQ

Which model should I select?

Provide fastener size, target torque or preload, available clearance and the application environment.

Can the configuration be customized?

Yes. Tooling, reaction arrangements, hoses, pumps and controls can be matched to the project.
