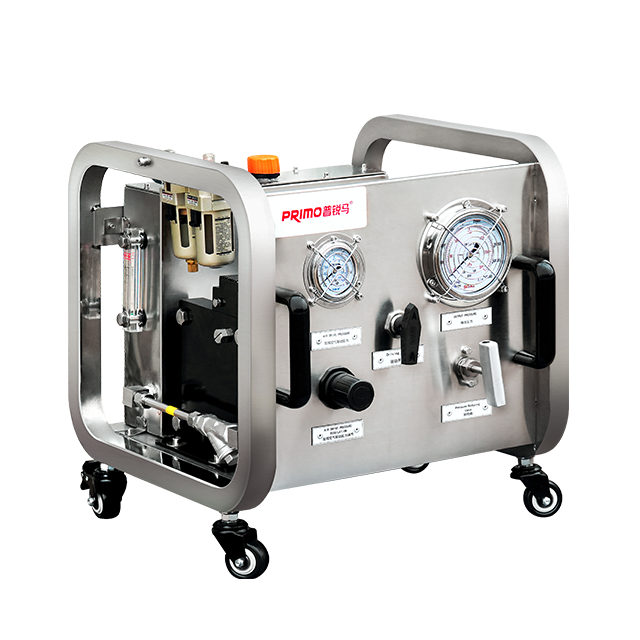

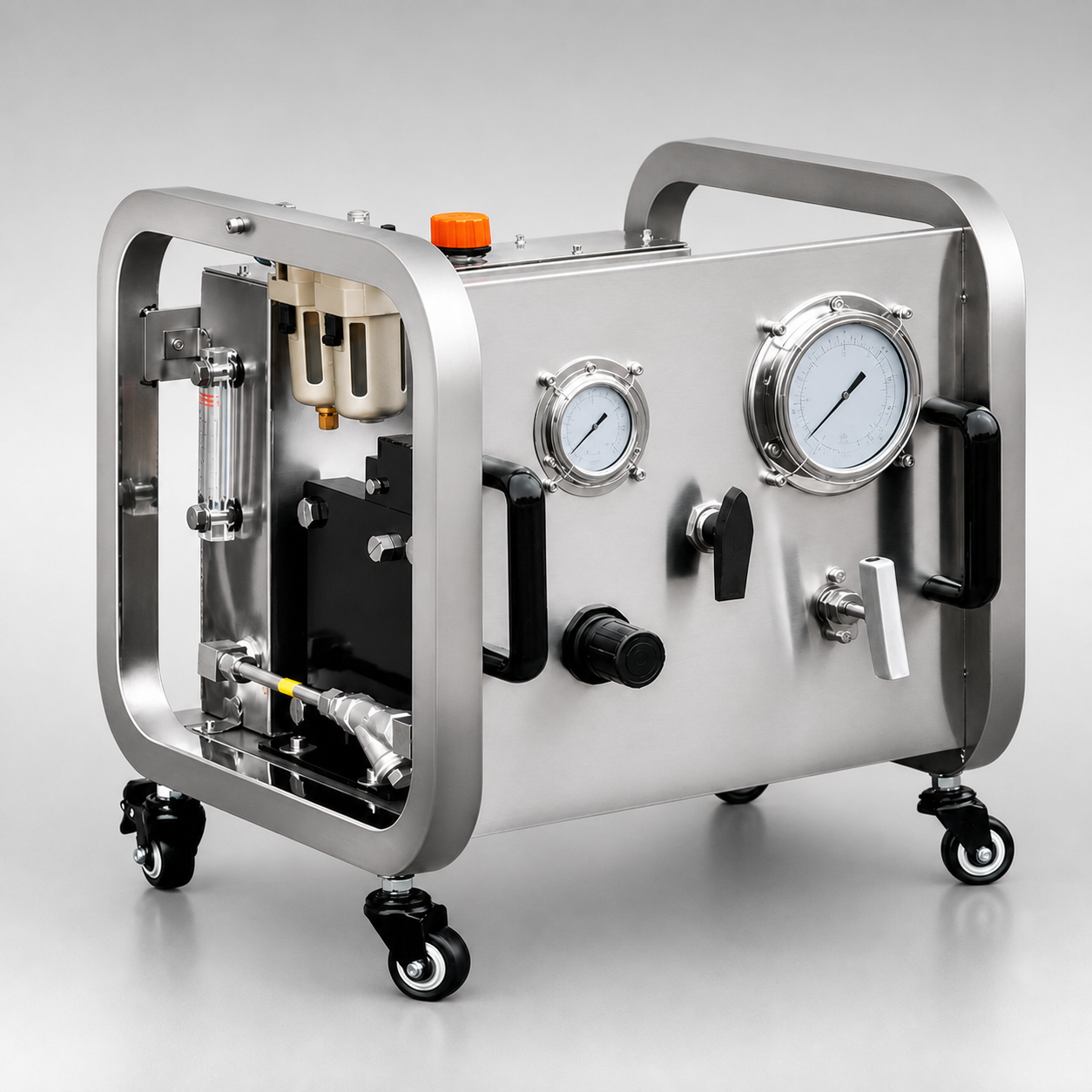

Ultra-High Pressure Air Pump

Ultra-High Pressure Air Pump — Air pressure 2-8 bar, air consumption 0.8m³/min

Ultra-High Pressure Pumps

Product categoryUltra-High Pressure Pumps

Model rangeASP150, ASP200, ASP300

Working Pressure (MPa)150 – 300

PressureRatio240 – 400

Ask an Engineer

Overview

Air pressure 2-8 bar, air consumption 0.8m³/min Output pressure is proportional to air supply, output pressure can be set by adjusting supply air pressure The pump will automatically stop when the set pressure is reached

Features

Air pressure 2-8 bar, air consumption 0.8m³/min
Output pressure is proportional to air supply, output pressure can be set by adjusting supply air pressure
The pump will automatically stop when the set pressure is reached
Explosion proof

Specifications

Product categoryUltra-High Pressure Pumps

Model rangeASP150, ASP200, ASP300

Working Pressure (MPa)150 – 300

PressureRatio240 – 400

Flow rate (L/min)2.8@0MPa0.35@150MPa – 2.8@0MPa0.35@300MPa

Reservior(L)7

Air Inlet(in)1/2 BSP

High Pressure outlet(in)G1/4

Size(mm)450 ×450 ×450

Technical Data

Technical table 1
Model | Working Pressure (MPa) | PressureRatio | Flow rate (L/min) | Reservior(L) | Air Inlet(in) | High Pressure outlet(in) | Size(mm) | Weight(kg)
ASP150 | 150 | 240 | 2.8@0MPa0.35@150MPa | 7 | 1/2 BSP | G1/4 | 450 ×450 ×450 | 26
ASP200 | 200 | 300 | 2.8@0MPa0.35@200MPa | 7 | 1/2 BSP | G1/4 | 450 ×450 ×450 | 27
ASP300 | 300 | 400 | 2.8@0MPa0.35@300MPa | 7 | 1/2 BSP | G1/4 | 450 ×450 ×450 | 27
