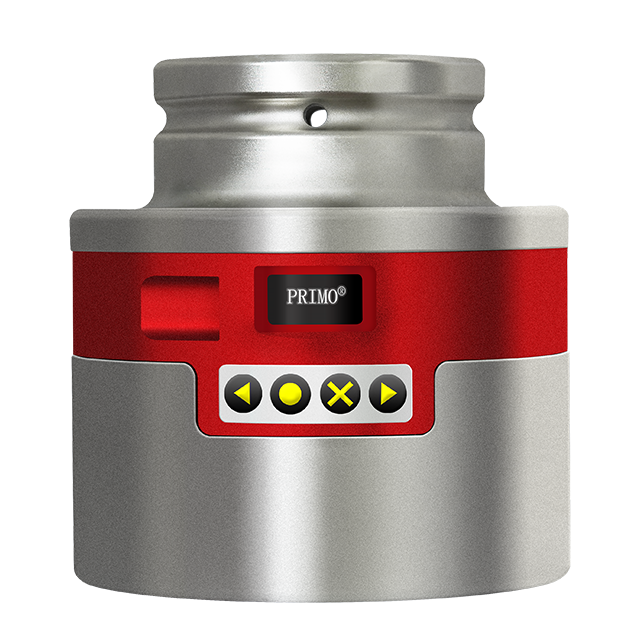

SMART SOCKETS

Measures the actual torque applied to the bolt, applicable to torque tools calibration

Smart Sockets

Product categorySmart Sockets

Model range1 – ZT63100020K

ModelZT25041002K – ZT63090020K

Torque Range (Nm)200-2000 – 2000-20000

Ask an Engineer

Overview

Measures the actual torque applied to the bolt, applicable to torque tools calibration Measures and displays peak or real-time torque values Full data collection, can be exported in XLS file

Features

Measures the actual torque applied to the bolt, applicable to torque tools calibration
Measures and displays peak or real-time torque values
Full data collection, can be exported in XLS file
Real time data could be viewed on a smartphone or tablet via bluetooth
Accuracy ± 1%

Specifications

Product categorySmart Sockets

Model range1 – ZT63100020K

ModelZT25041002K – ZT63090020K

Torque Range (Nm)200-2000 – 2000-20000

Weight(kg)1.1 – 9

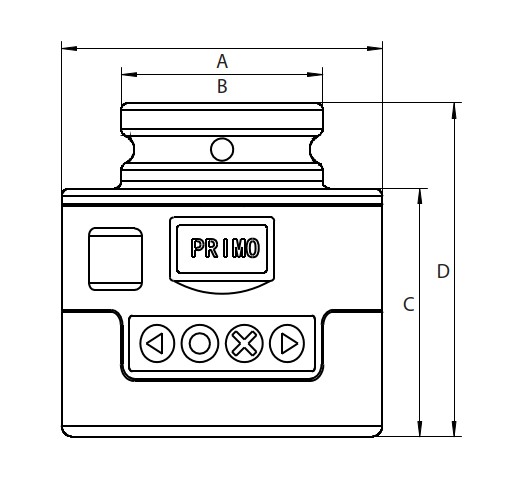

Size A × B × C × D (mm)72 ×54 ×67 ×88 – 135 × 127 × 120 × 160

Technical Data

Technical table 1
Square Hole Size (in) | Model | Torque Range (Nm) | Weight(kg) | Size A × B × C × D (mm)
1 | ZT25041002K | 200-2000 | 1.1 | 72 ×54 ×67 ×88
ZT25046002K
ZT25050004K | 400-4000 | 1.5 | 86 ×54 ×69 ×90
ZT25055004K
ZT25060004K
1- 1/2 | ZT38065006K | 600-6000 | 5.4 | 120 ×90 × 100 × 130
ZT38070006K
ZT38075012K | 1200- 12000 | 5.4 | 120 ×90 × 100 × 130
ZT38080012K
ZT38085012K
ZT38090016K | 1600- 16000 | 6.4 | 135 ×90 × 100 × 140
ZT38095016K
ZT38100016K
2- 1/2 | ZT63090020K | 2000-20000 | 9 | 135 × 127 × 120 × 160
ZT63095020K
ZT63100020K
