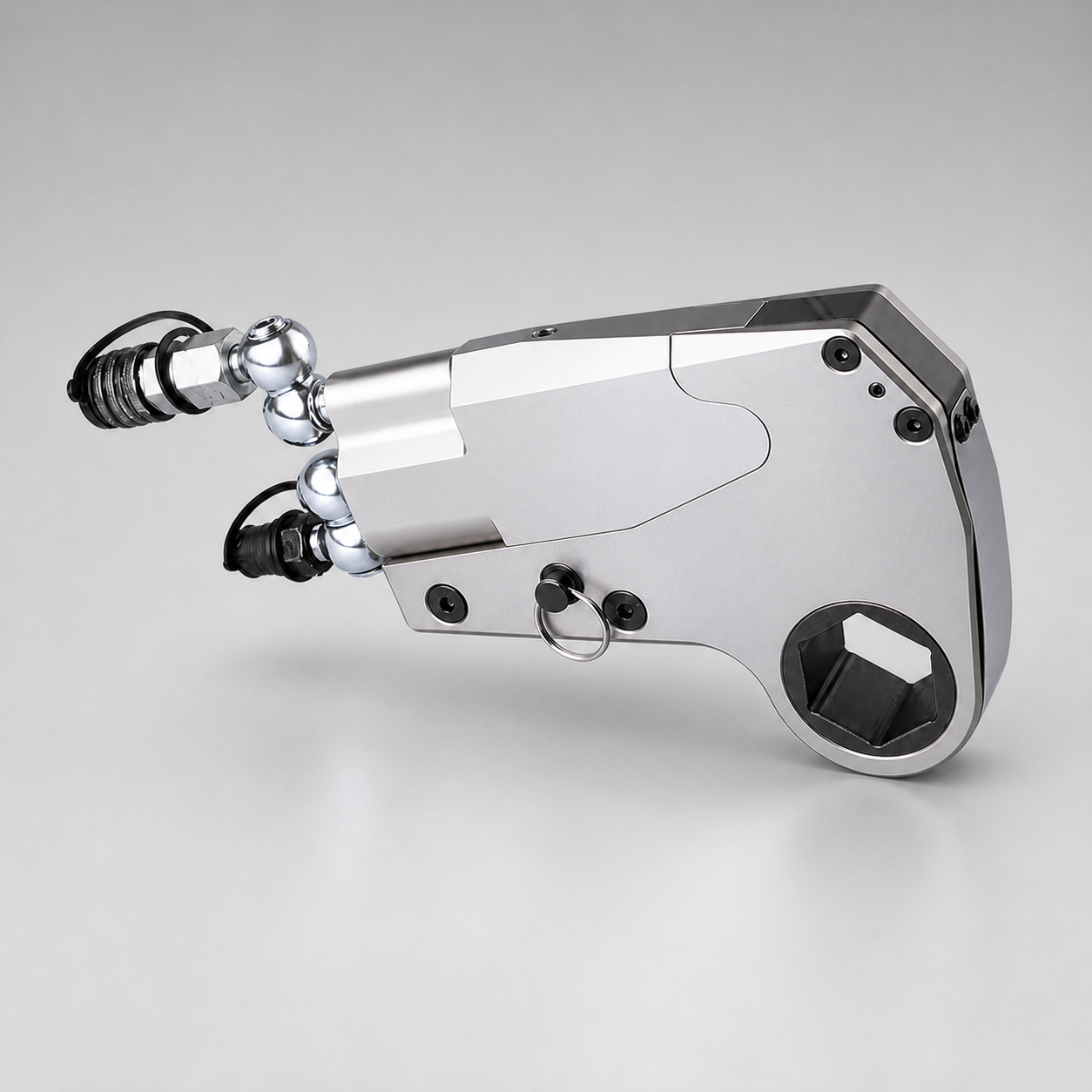

PX Low Clearance Hydraulic Torque Wrench
PX Low Clearance Hydraulic Torque Wrench
1. Flat body and equal thickness design makes a smaller shape
Hydraulic Torque Wrenches
Product categoryHydraulic Torque Wrenches
Model rangePX-2, PX-4, PX-8, PX- 16, PX-32
Imperial Bolt(in)3/4~2-3/8 – 3- 1/8~6- 1/8
Metric Bolt(mm)19-60 – 80- 155
Overview
1. Flat body and equal thickness design makes a smaller shape 2. Compact uni-body made of aviation material provides high strength, light weight and high torque ratio 4. Slim body design for easy operation in tight spaces 5. 27︒ each stroke provides high performance and speed 6. Anti-corrosive treated surface, applicable for hash environments How to choose PX Low Clearance Hydraulic Wrench
Features
- Flat body and equal thickness design makes a smaller shape
- Compact uni-body made of aviation material provides high strength, light weight and high torque ratio
- Slim body design for easy operation in tight spaces
- 27︒ each stroke provides high performance and speed
- Anti-corrosive treated surface, applicable for hash environments
Specifications
Product categoryHydraulic Torque Wrenches
Model rangePX-2, PX-4, PX-8, PX- 16, PX-32
Imperial Bolt(in)3/4~2-3/8 – 3- 1/8~6- 1/8
Metric Bolt(mm)19-60 – 80- 155
Min.Torque(Nm)266 – 4933
Max.Torque(Nm)2668 – 49338
Power Head Weight(Kg)2.0 – 12.7
Power Head Range(Kg)1.6-2.2 – 25.3-27.3
Output Accuracy±3%
A(mm)144 – 361
Technical Data
Technical table 1
Model | Imperial Bolt(in) | Metric Bolt(mm) | Min.Torque(Nm) | Max.Torque(Nm) | Power Head Weight(Kg) | Power Head Range(Kg) | Output Accuracy | Repeat Accuracy
PX-2 | 3/4~2-3/8 | 19-60 | 266 | 2668 | 2.0 | 1.6-2.2 | ±3% | 2%
PX-4 | 1~3- 1/8 | 25-80 | 535 | 5355 | 3.5 | 3.5-4.5 | ±3% | 2%
PX-8 | 1-7/8~4 | 50- 105 | 1194 | 11943 | 4.5 | 6.7-7.8 | ±3% | 2%
PX- 16 | 2-5/8~4-5/8 | 65- 115 | 2297 | 22975 | 8.3 | 9.5- 12.7 | ±3% | 2%
PX-32 | 3- 1/8~6- 1/8 | 80- 155 | 4933 | 49338 | 12.7 | 25.3-27.3 | ±3% | 2%
Technical table 2
Model | A(mm) | B(mm) | The range of C(mm) | D(mm)
PX-2 | 144 | 102 | 9.6- 15. 1 | 31
PX-4 | 229 | 139 | 11.7- 13.6 | 44
PX-8 | 243 | 177 | 14.4-24. 1 | 53
PX- 16 | 328 | 193 | 17.3-23.3 | 64
PX-32 | 361 | 257 | 24.5-30.8 | 84
Technical table 3
PX-2 | PX-4 | PX-8 | PX-16 | PX-32
Model | Hex Size A/F(mm) | Model | Hex Size A/F(mm) | Model | Hex Size A/F(mm) | Model | Hex Size A/F(mm) | Model | Hex Size A/F(mm)
PXL2- 19 | 19 | PXL4-36 | 36 | PXL8-50 | 50 | PXL16-65 | 65 | PXL32-80 | 80
PXL2-22 | 22 | PXL4-41 | 41 | PXL8-55 | 55 | PXL16-70 | 70 | PXL32-85 | 85
PXL2-24 | 24 | PXL4-46 | 46 | PXL8-60 | 60 | PXL16-75 | 75 | PXL32-90 | 90
PXL2-27 | 27 | PXL4-50 | 50 | PXL8-65 | 65 | PXL16-80 | 80 | PXL32-95 | 95
PXL2-30 | 30 | PXL4-55 | 55 | PXL8-70 | 70 | PXL16-85 | 85 | PXL32- 100 | 100
PXL2-32 | 32 | PXL4-60 | 60 | PXL8-75 | 75 | PXL16-90 | 90 | PXL32- 105 | 105
PXL2-36 | 36 | PXL4-65 | 65 | PXL8-80 | 80 | PXL16-95 | 95 | PXL32- 110 | 110
PXL2-41 | 41 | PXL4-70 | 70 | PXL8-85 | 85 | PXL16- 100 | 100 | PXL32- 115 | 115
PXL2-46 | 46 | PXL4-75 | 75 | PXL8-90 | 90 | PXL16- 105 | 105 | PXL32- 120 | 120
PXL2-50 | 50 | PXL4-80 | 80 | PXL8-95 | 95 | PXL16- 110 | 110 | PXL32- 130 | 130
PXL2-55 | 55 | PXL8- 100 | 100 | PXL16- 115 | 115 | PXL32- 145 | 145
PXL2-60 | 60 | PXL8- 105 | 105 | PXL32- 155 | 155
Technical table 4
PX-2 | PX-4 | PX-8 | PX-16 | PX-32
Model | Hex Size A/F(in) | Model | Hex Size A/F(in) | Model | Hex Size A/F(in) | Model | Hex Size A/F(in) | Model | Hex Size A/F(in)
PXL2-3/4 | 3/4 | PXL4- 1-7/16 | 1-7/16 | PXL8- 1- 13/16 | 1- 13/16 | PXL16-2-3/8 | 2-3/8 | PXL32-3- 1/2 | 3- 1/2
PXL2-7/8 | 7/8 | PXL4- 1-5/8 | 1-5/8 | PXL8-2 | 2 | PXL16-2-9/16 | 2-9/16 | PXL32-3- 11/16 | 3- 11/16
PXL2- 1- 1/16 | 1- 1/16 | PXL4- 1- 13/16 | 1- 13/16 | PXL8-2-3/16 | 2-3/16 | PXL16-2-3/4 | 2-3/4 | PXL32-3-7/8 | 3-7/8
PXL2- 1-3/16 | 1-3/16 | PXL4-2 | 2 | PXL8-2-3/8 | 2-3/8 | PXL16-2- 15/16 | 2- 15/16 | PXL32-4- 1/8 | 4- 1/8
PXL2- 1- 1/4 | 1- 1/4 | PXL4-2-3/16 | 2-3/16 | PXL8-2-9/16 | 2-9/16 | PXL16-3- 1/8 | 3- 1/8 | PXL32-4- 1/4 | 4- 1/4
PXL2- 1-7/16 | 1-7/16 | PXL4-2-3/8 | 2-3/8 | PXL8-2-3/4 | 2-3/4 | PXL16-3- 1/2 | 3- 1/2 | PXL32-4-5/8 | 4-5/8
PXL2- 1-5/8 | 1-5/8 | PXL4-2-9/16 | 2-9/16 | PXL8-2- 15/16 | 2- 15/16 | PXL16-3- 11/16 | 3- 11/16 | PXL32-5 | 5
PXL2- 1- 13/16 | 1- 13/16 | PXL4-2-3/4 | 2-3/4 | PXL8-3- 1/8 | 3- 1/8 | PXL16-3-7/8 | 3-7/8 | PXL32-5-3/8 | 5-3/8
PXL2-2 | 2 | PXL4-2- 15/16 | 2- 15/16 | PXL8-3- 1/2 | 3- 1/2 | PXL16-4- 1/8 | 4- 1/8 | PXL32-5-3/4 | 5-3/4
PXL2-2-3/16 | 2-3/16 | PXL4-3- 1/8 | 3- 1/8 | PXL8-3- 11/16 | 3- 11/16 | PXL16-4- 1/4 | 4- 1/4
PXL2-2-3/8 | 2-3/8 | PXL16-4-5/8 | 4-5/8
Technical table 5
1、Choosing PX power head according to the torquerequired by the application | 2、Choosing PXL wrench head according to bolt nuts size required by the application
PX power head | PXL wrench head
FAQ
Which model should I select?
Provide fastener size, target torque or preload, available clearance and the application environment.
Can the configuration be customized?
Yes. Tooling, reaction arrangements, hoses, pumps and controls can be matched to the project.
