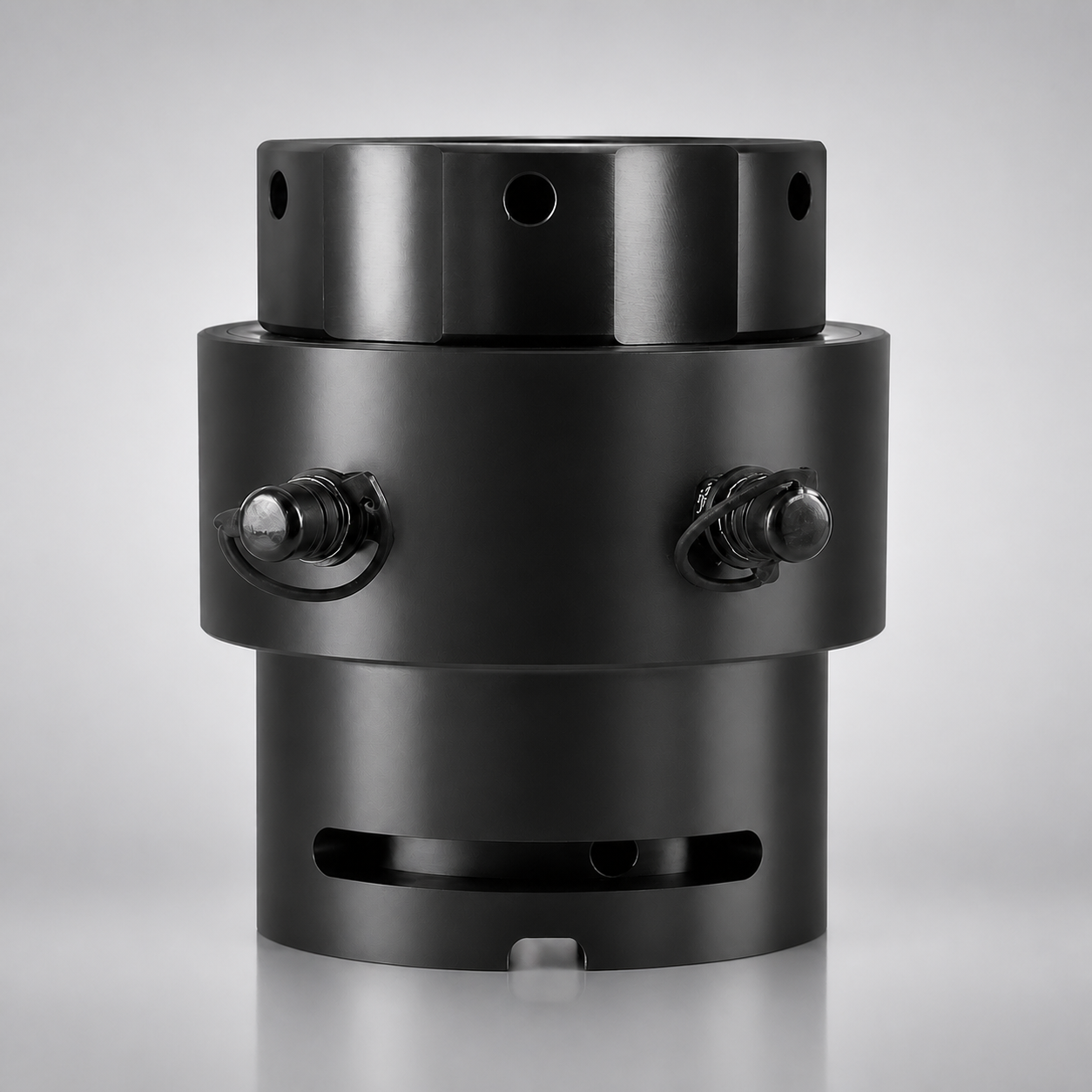

PWT Hydraulic Bolt Tensioner

PWT Hydraulic Bolt Tensioner — 1.Made of high strength steel，Solid and reliable

Hydraulic Bolt Tensioners

Product categoryHydraulic Bolt Tensioners

Model rangePWT1 – M150

BOlting SizeMetric – 5-3/4"-4

Max.LoadImperia – 5- 1/4"-4

Ask an Engineer

Overview

1.Made of high strength steel，Solid and reliable 2. High quality seal kit ensures no leakage 3.Applicable of all international flange standards 4. Over stroke safety device 5.Easy operation and maintenance 6.Output accuracy ±2%，repeatable accuracy 2%

Features

Made of high strength steel，Solid and reliable
High quality seal kit ensures no leakage
Applicable of all international flange standards
Over stroke safety device
Easy operation and maintenance
Output accuracy ±2%，repeatable accuracy 2%

Specifications

Product categoryHydraulic Bolt Tensioners

Model rangePWT1 – M150

BOlting SizeMetric – 5-3/4"-4

Max.LoadImperia – 5- 1/4"-4

Hyd.Area(KN) – 4650

Stroke(mm²) – 31000

Weight(mm) – 10

Technical Data

Technical table 1
Model | BOlting Size | Max.Load | Hyd.Area | Stroke | Weight
Metric | Imperia | (KN) | (mm²) | (mm) | (kg)
PWT1 | (mm) | (in) | 300 | 2000 | 8 | 3
M20 | 3/4"- 10
M22 | 7/8"-9
M24 | 1"-8
M27
M27 | 1"-8
PWT2 | M30 | 1- 1/8"-7 | 525 | 3500 | 8 | 4.8
M33 | 1- 1/4"-7
M36 | 1-3/8"-6
M36 | 1-3/8"-6
PWT3 | M39 | 1- 1/2"-6 | 750 | 5000 | 8 | 7.5
M42 | 1-3/4"-5
M45
M42 | 1- 1/2"-6
PWT4 | M45 | 1-3/4"-5 | 900 | 6000 | 8 | 11
M48 | 2"-4- 1/2
M52
M45 | 1-3/4"-5
M48 | 2"-4- 1/2
PWT5 | M52 | 2- 1/4"-4- 1/2 | 1350 | 9000 | 8 | 17.3
M56
M60
M60 | 2- 1/2"-4
M64 | 2-3/4"-4
PWT6 | M68 | 1950 | 13000 | 8 | 25
M72
M76
M72 | 2-3/4"-4
PWT7 | M76 | 3"-4 | 2400 | 16000 | 10 | 33
M80
M80 | 3- 1/4"-4
M85 | 3- 1/2"-4
PWT8 | M90 | 3-3/4"-4 | 3000 | 20000 | 10 | 39
M95
M100
M100 | 3-3/4"-4
M110 | 4"-4
PWT9 | M120 | 4- 1/4"-4 | 3750 | 25000 | 10 | 56
M125 | 4- 1/2"-4
4-3/4"-4
M125 | 5"-4
PWT10 | M130 | 5- 1/4"-4 | 4650 | 31000 | 10 | 77
M140 | 5- 1/2"-4
M150 | 5-3/4"-4
