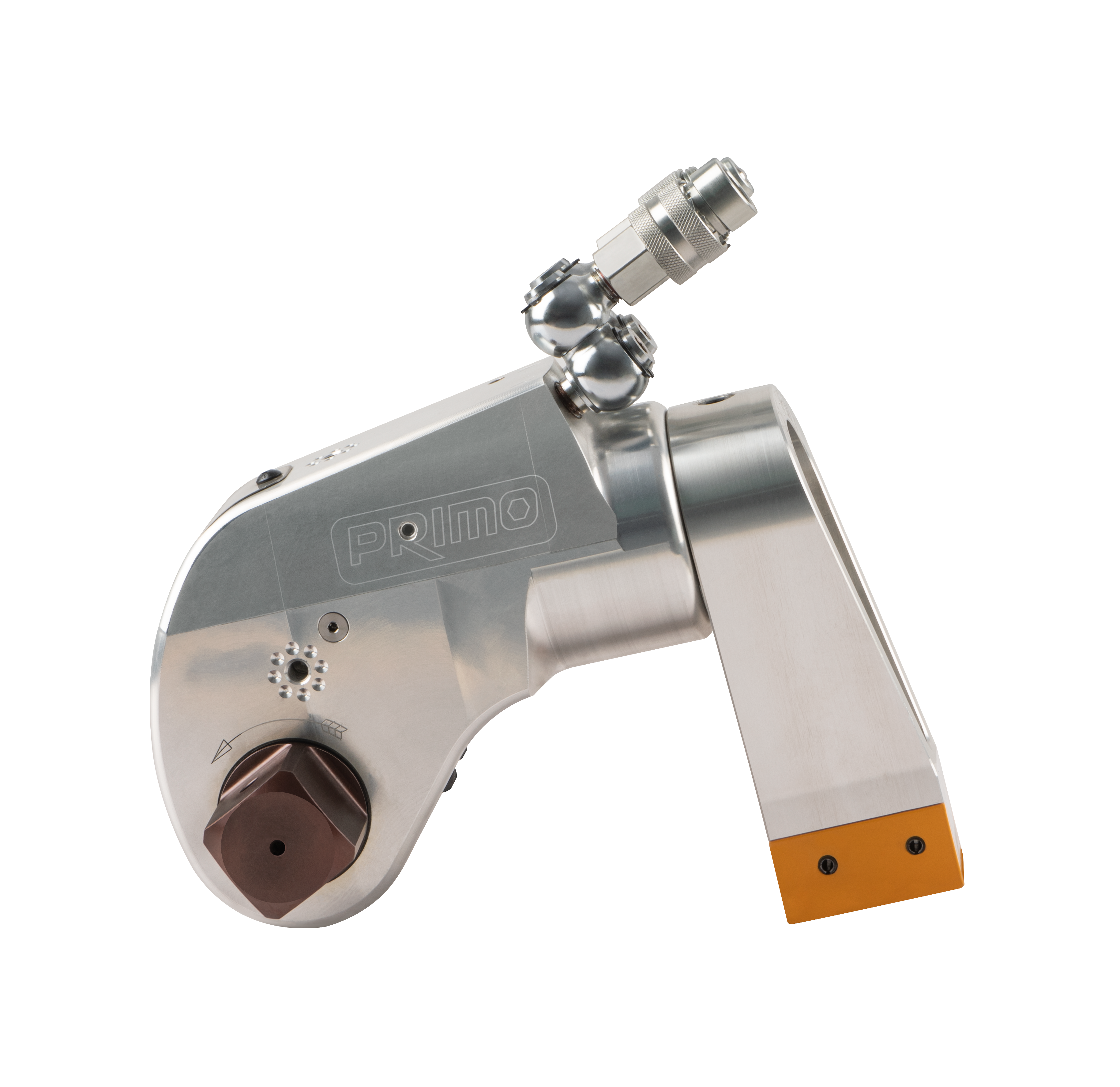

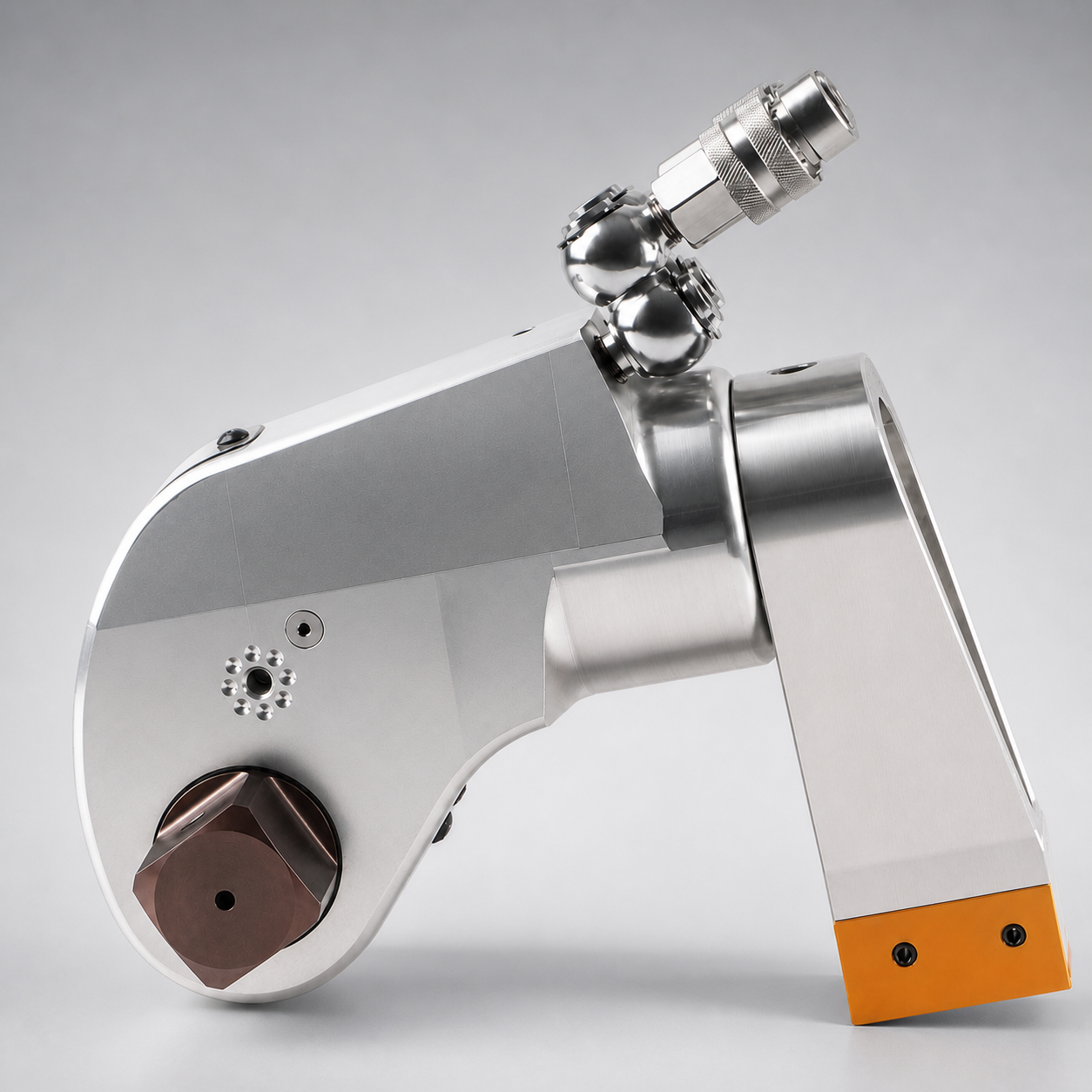

Features

• Square drive made of high-strength alloy possesses long life
• No reaction pawl, the tools won't stuck
• 27︒each stroke provides high performance and high-speed
• Compact uni-body made of aviation material for high strength, light weight and high torque weight ratio
• Slim body design for easy operation in tight spaces
• Anti-corrosive treated surface, applicable for hash environments

Specifications

Technical Data

Technical table 1
Model | Square Drive(in) | Metric Bolt | Min.Torque(Nm) | Max.Torque(Nm) | Output Acuracy | Repeat Accuracy | Weight(kg)
PU-2 | 3/4 | M8-M30 | 181 | 1813 | ±3% | 2% | 2.1
PU-3 | 1 | M16-M42 | 451 | 4514 | ±3% | 2% | 4.8
PU-5 | 1-1/2 | M20-M48 | 733 | 7335 | ±3% | 2% | 7.2
PU-7 | 1-1/2 | M22-M56 | 1050 | 10500 | ±3% | 2% | 9.3
PU- 10 | 1-1/2 | M42-M72 | 1481 | 14810 | ±3% | 2% | 13.8
PU-20 | 2-1/2 | M48-M80 | 2715 | 27150 | ±3% | 2% | 28.1
PU-27 | 2-1/2 | M52-M90 | 3745 | 37450 | ±3% | 2% | 31.8
PU-36 | 2-1/2 | M64-M120 | 5160 | 51600 | ±3% | 2% | 43.7

Technical table 2
Model | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | F(mm) | G(mm) | H(mm)
PU-2 | 128 | 167 | 108 | 51 | 71 | 117 | 26 | 28
PU-3 | 158 | 208 | 134 | 67 | 94 | 148 | 33 | 35
PU-5 | 190 | 250 | 163 | 82 | 128 | 180 | 40 | 43
PU-7 | 215 | 285 | 182 | 92 | 136 | 203 | 45 | 48
PU-10 | 240 | 316 | 205 | 103 | 159 | 228 | 51 | 54
PU-20 | 285 | 376 | 341 | 123 | 184 | 270 | 60 | 64
PU-27 | 323 | 425 | 265 | 134 | 193 | 302 | 66 | 74
PU-36 | 348 | 549 | 335 | 158 | 218 | 330 | 76 | 80

Applications

• Steel structures
• Process plants
• Heavy machinery
• Power stations and large flange connections
