Portable Torque Test

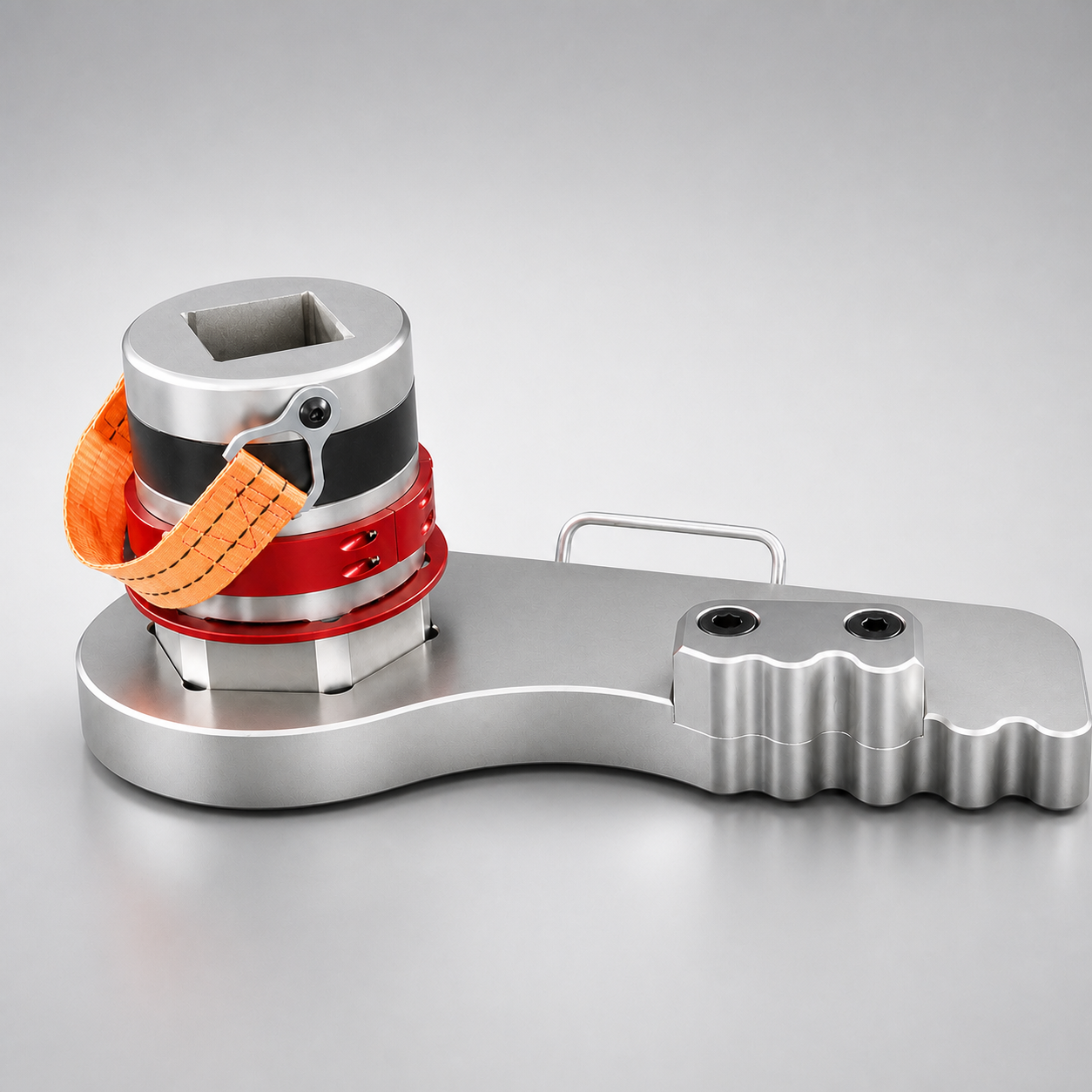

Portable Torque Test — Portable Torque Test（Square Drive）

Torque Test

Product categoryTorque Test

Model rangeBXN18000, BXN38000, BXN55000

Weight(kg)12 – 32

Typesquare drive – 0-55000

Ask an Engineer

Overview

Portable Torque Test（Square Drive） 1. Suitable for the testing of most hydraulic torque wrenches 2. Split type, lightweight design, aviation aluminum shell, can be easily carried to the site 3. Wide range, few accessories, friendly interface, strong and durable 4. The sensor adopts the multi-point calibration mode has a high 5. One-button startup detection, real-time display, without secondary selection operation 6. Universal battery power supply, convenient, safe and fast

Features

Suitable for the testing of most hydraulic torque wrenches
Split type, lightweight design, aviation aluminum shell, can be
Wide range, few accessories, friendly interface, strong and durable
The sensor adopts the multi-point calibration mode has a high
One-button startup detection, real-time display, without secondary selection operation
Universal battery power supply, convenient, safe and fast

Specifications

Product categoryTorque Test

Model rangeBXN18000, BXN38000, BXN55000

Weight(kg)12 – 32

Typesquare drive – 0-55000

Torque Range(Nm)0- 18000 – 537 ×200 × 186

Accuracy(FS)≤0.5%

Size A × B × C (mm)340 × 160 × 127

Technical Data

Technical table 1
Model | Weight(kg) | Type | Torque Range(Nm) | Accuracy(FS) | Size A × B × C (mm)
BXN18000 | 12 | square drive | 0- 18000 | ≤0.5% | 340 × 160 × 127
BXN38000 | 29.6 | 0-38000 | 493 ×200 × 171
BXN55000 | 32 | 0-55000 | 537 ×200 × 186

Technical table 2
MODEL | Weight(kg) | Type | Torque Range(Nm) | Accuracy(FS) | Size A × B × C (mm)
ZKBXN6000 | 6.6 | Hollow | 0-6000 | ≤0.5% | 215 × 110 × 111
ZKBXN20000 | 20.5 | 0-20000 | 335 × 170 × 141
ZKBXN45000 | 39 | 0-45000 | 425 ×200 × 171
