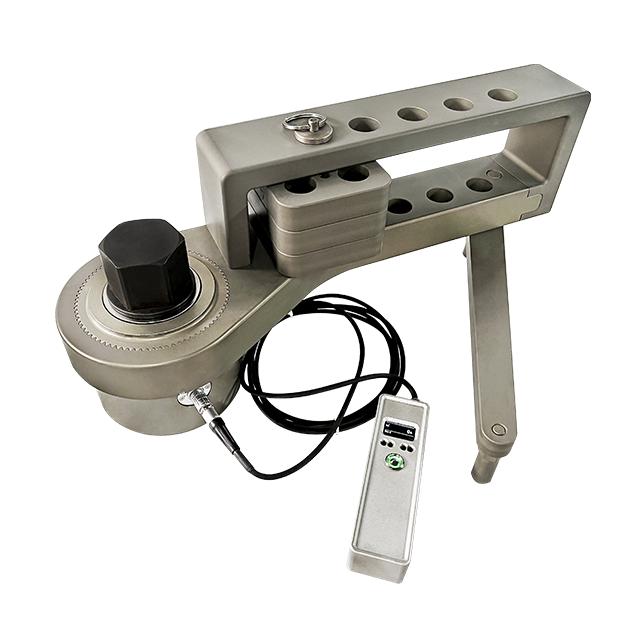

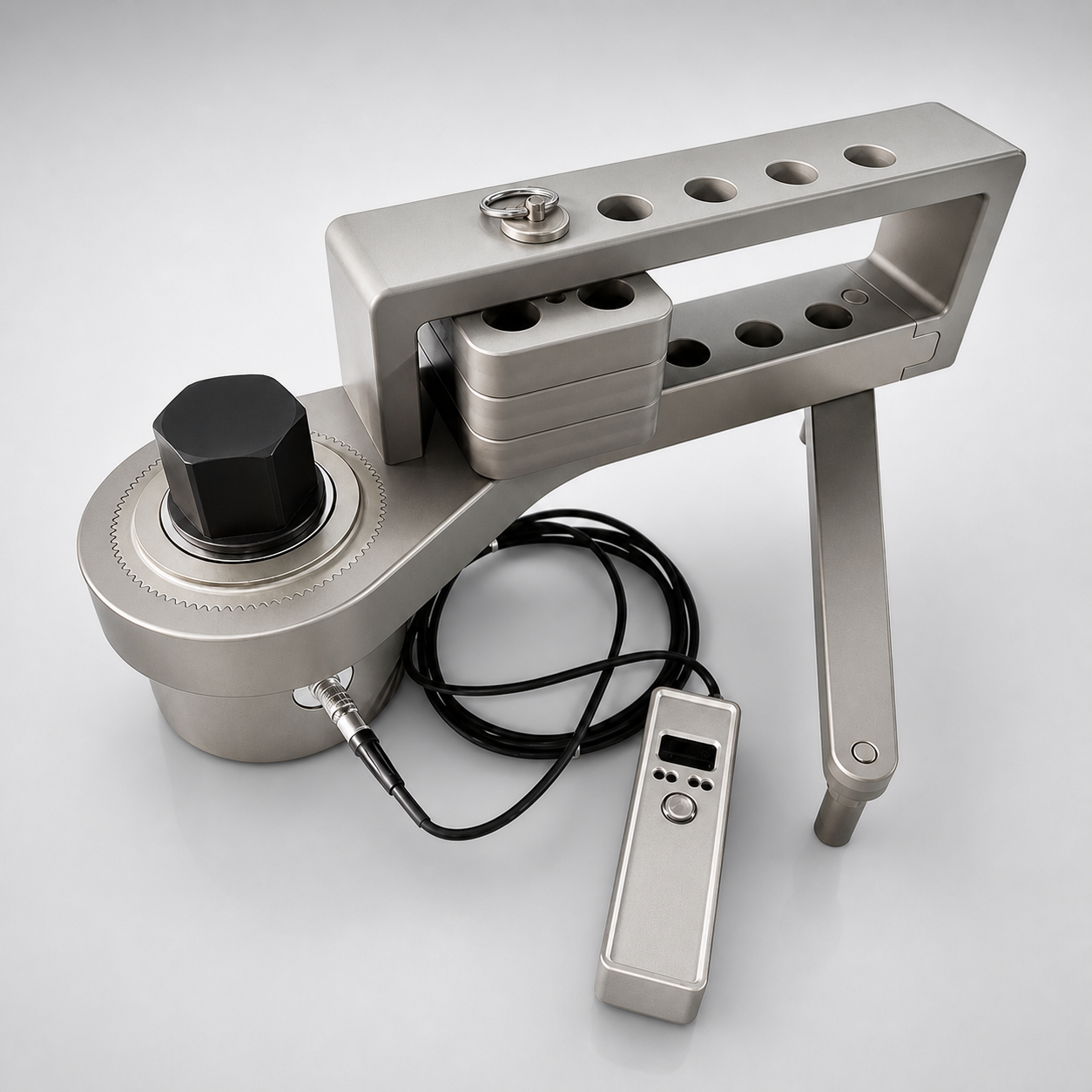

Portable Hydraulic Wrench Torque Test

Suitable for the testing of most hydraulic torque wrenches

Torque Test

Product categoryTorque Test

Model rangeNJY15000

Range(N.M)500- ± 15000

Torque display accuracy(FS)≤0.05%

Ask an Engineer

Overview

Suitable for the testing of most hydraulic torque wrenches Portable, lightweight design, more than 70% of the parts are made by aviation aluminum Wide range, few accessories, high precision, friendly interface, strong and durable

Features

Suitable for the testing of most hydraulic torque wrenches
Portable, lightweight design, more than 70% of the parts are made by aviation aluminum
Wide range, few accessories, high precision, friendly interface, strong and durable
The torque sensor adopts the multi-point calibration mode has high linear accuracy
Floating torque transfer structure, to eliminate the influence of the partial load bending, with high calibration precision and long life
One-button startup detection, real-time display, without secondary selection operation
Universal 9V battery power supply, convenient, safe, fast, can be easily carried to the site for verification

Specifications

Product categoryTorque Test

Model rangeNJY15000

Range(N.M)500- ± 15000

Torque display accuracy(FS)≤0.05%

weight(kg)13

Repeat(FS)0.05%

Size A × B × C (mm)480 × 145 × 195

Technical Data

Technical table 1
Model | Range(N.M) | Torque display accuracy(FS) | weight(kg) | Repeat(FS) | Size A × B × C (mm)
NJY15000 | 500- ± 15000 | ≤0.05% | 13 | 0.05% | 480 × 145 × 195
