Pneumatic-Hydraulic Pump

Pneumatic-Hydraulic Pump

Pneumatic-Hydraulic Pump

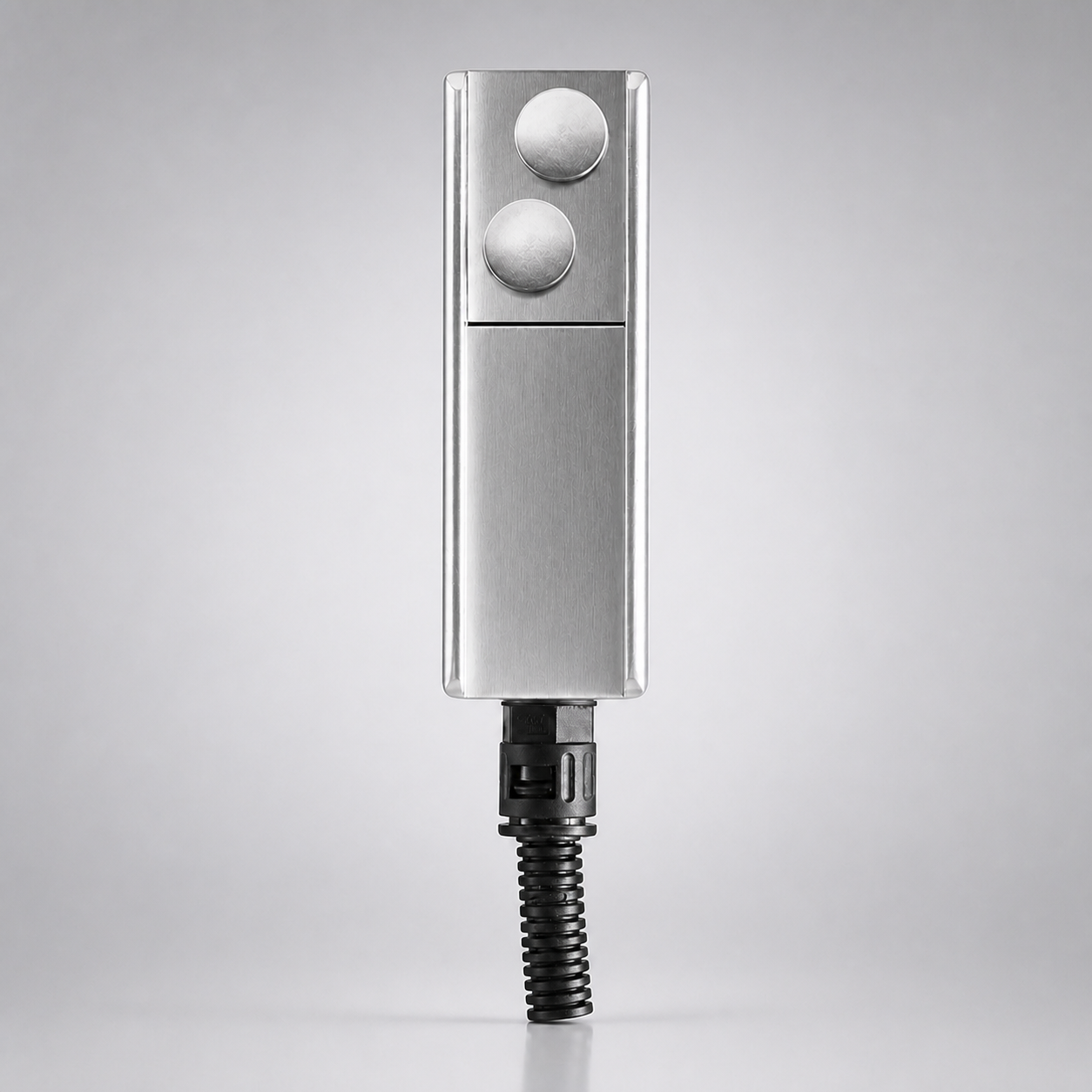

Pneumatic-Hydraulic Pump — Aluminum explosion proof pandent,

Hydraulic Pumps

Product categoryHydraulic Pumps

Model rangePA8042A1, PA8042A3

ReservoirCapacity(L)7.6 – 4

MotorSize(KW)3

Ask an Engineer

Overview

Aluminum explosion proof pandent, durable and reliable Solenoid pilot valve, anti-wear and no leakage

Features

Powered by air,explosion proof, safe, no warming up,can operate continously
External release valve to protect the pum
Operate up to 4 hydraulic torque wrenches simultaneously by multi-port manifold
Large flow, high speed, light weight
One pair quick coupling for standard configuration. Please specify in the order for two or four pairs of quick couplings

Specifications

Product categoryHydraulic Pumps

Model rangePA8042A1, PA8042A3

ReservoirCapacity(L)7.6 – 4

MotorSize(KW)3

Air SourcePressure：0.5-0.7MPaAir Consumption：2.2 m3/min

Output Flow(L/min)8.0@0-6.5MPa,1.8@6.5-32MPa,0.85@32-70MPa

Max.WorkingPressure(MPa)70

Size(mm)A× B×C×D281×428×445×155

StandardControlLine(m)6

Technical Data

Technical table 1
Model | ReservoirCapacity(L) | MotorSize(KW) | Air Source | Output Flow(L/min) | Max.WorkingPressure(MPa) | Size(mm)A× B×C×D | StandardControlLine(m) | Weight(kg) | PortNo.
PA8042A1 | 7.6 | 3 | Pressure：0.5-0.7MPaAir Consumption：2.2 m3/min | 8.0@0-6.5MPa,1.8@6.5-32MPa,0.85@32-70MPa | 70 | 281×428×445×155 | 6 | 21 | 2
PA8042A3 | 4

FAQ

Which model should I select?

Provide fastener size, target torque or preload, available clearance and the application environment.

Can the configuration be customized?

Yes. Tooling, reaction arrangements, hoses, pumps and controls can be matched to the project.
