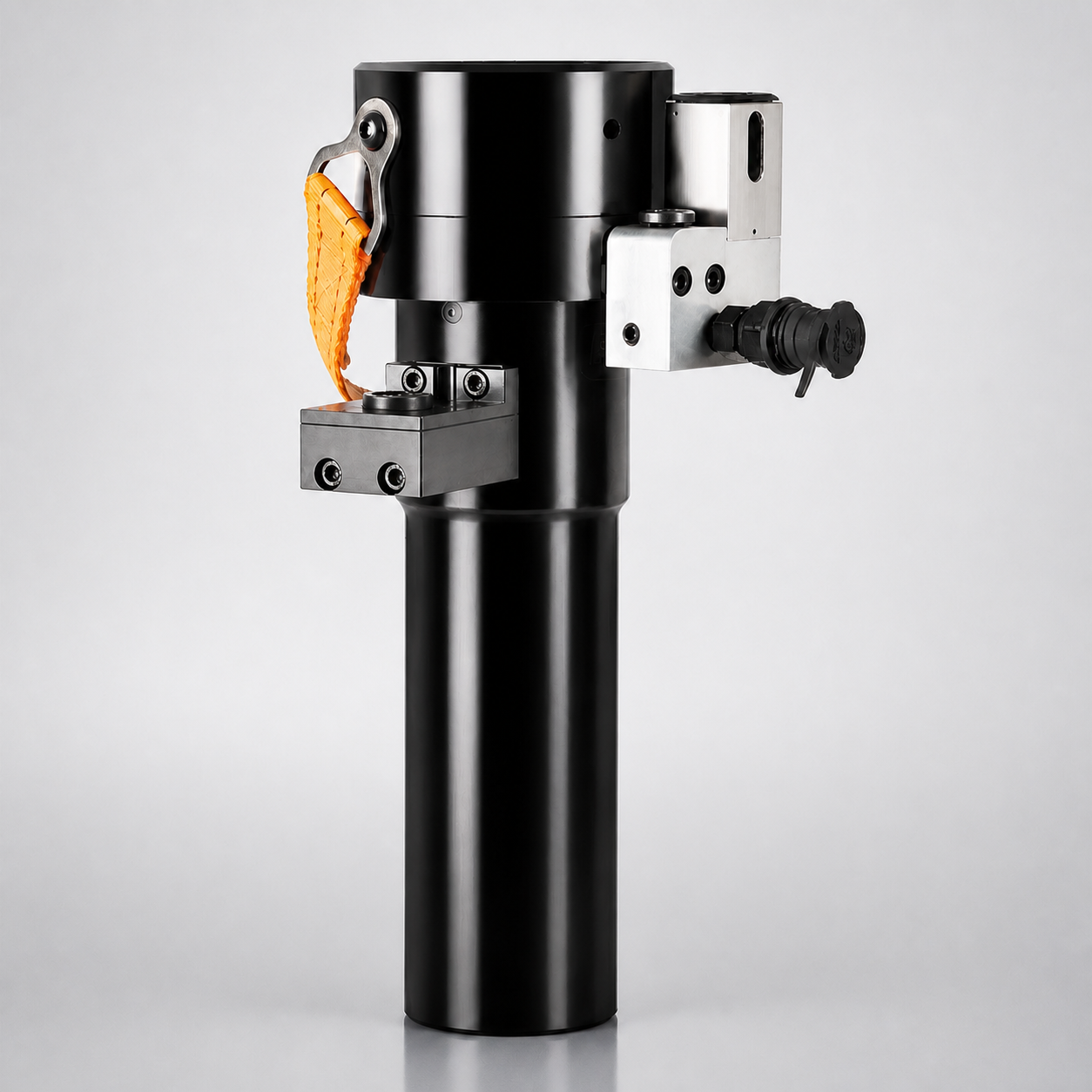

PGT Hydraulic Bolt Tensioner

PGT Hydraulic Bolt Tensioner — Made of high strength steel，Solid and reliable

Hydraulic Bolt Tensioners

Product categoryHydraulic Bolt Tensioners

Model range(mm) – PGT-M56

Bolt Diameter(in) – M56

The Min,Length of Thread (mm)1- 1/8 – 2- 1/4

Ask an Engineer

Overview

Made of high strength steel，Solid and reliable High quality seal kit ensures no leakage Applicable of all international flange standards

Features

Made of high strength steel，Solid and reliable
High quality seal kit ensures no leakage
Applicable of all international flange standards
Over stroke safety device
Easy operation and maintenance
Output accuracy ±2%，repeatable accuracy 2%

Specifications

Product categoryHydraulic Bolt Tensioners

Model range(mm) – PGT-M56

Bolt Diameter(in) – M56

The Min,Length of Thread (mm)1- 1/8 – 2- 1/4

The Max.Length of Thread(mm)62 – 108

Working stroke(mm)69 – 123

Bolt Distance(mm)10

Max.Load(KN)70 – 115

Outside Diameter(mm)460 – 1680

Technical Data

Technical table 1
Model | Bolt Diameter | The Min,Length of Thread (mm) | The Max.Length of Thread(mm) | Working stroke(mm) | Bolt Distance(mm) | Max.Load(KN) | Outside Diameter(mm) | Min.Height(mm)
(mm) | (in)
PGT-M30 | M30 | 1- 1/8 | 62 | 69 | 10 | 70 | 460 | 97 | 200
PGT-M33 | M33 | 1- 1/4 | 66 | 73 | 10 | 76 | 570 | 106 | 209
PGT-M36 | M36 | 1-3/8 | 75 | 82 | 10 | 82 | 670 | 117 | 234
PGT-M39 | M39 | 1- 1/2 | 78 | 88 | 10 | 90 | 800 | 125 | 226
PGT-M42 | M42 | 1-5/8 | 83 | 91 | 10 | 94 | 920 | 134 | 234
PGT-M45 | M45 | 1-3/4 | 87 | 96 | 10 | 96 | 1080 | 148 | 243
PGT-M48 | M48 | 1-7/8 | 93 | 102 | 10 | 102 | 1220 | 158 | 273
PGT-M52 | M52 | 2 | 102 | 114 | 10 | 107 | 1450 | 170 | 277
PGT-M56 | M56 | 2- 1/4 | 108 | 123 | 10 | 115 | 1680 | 181 | 304
