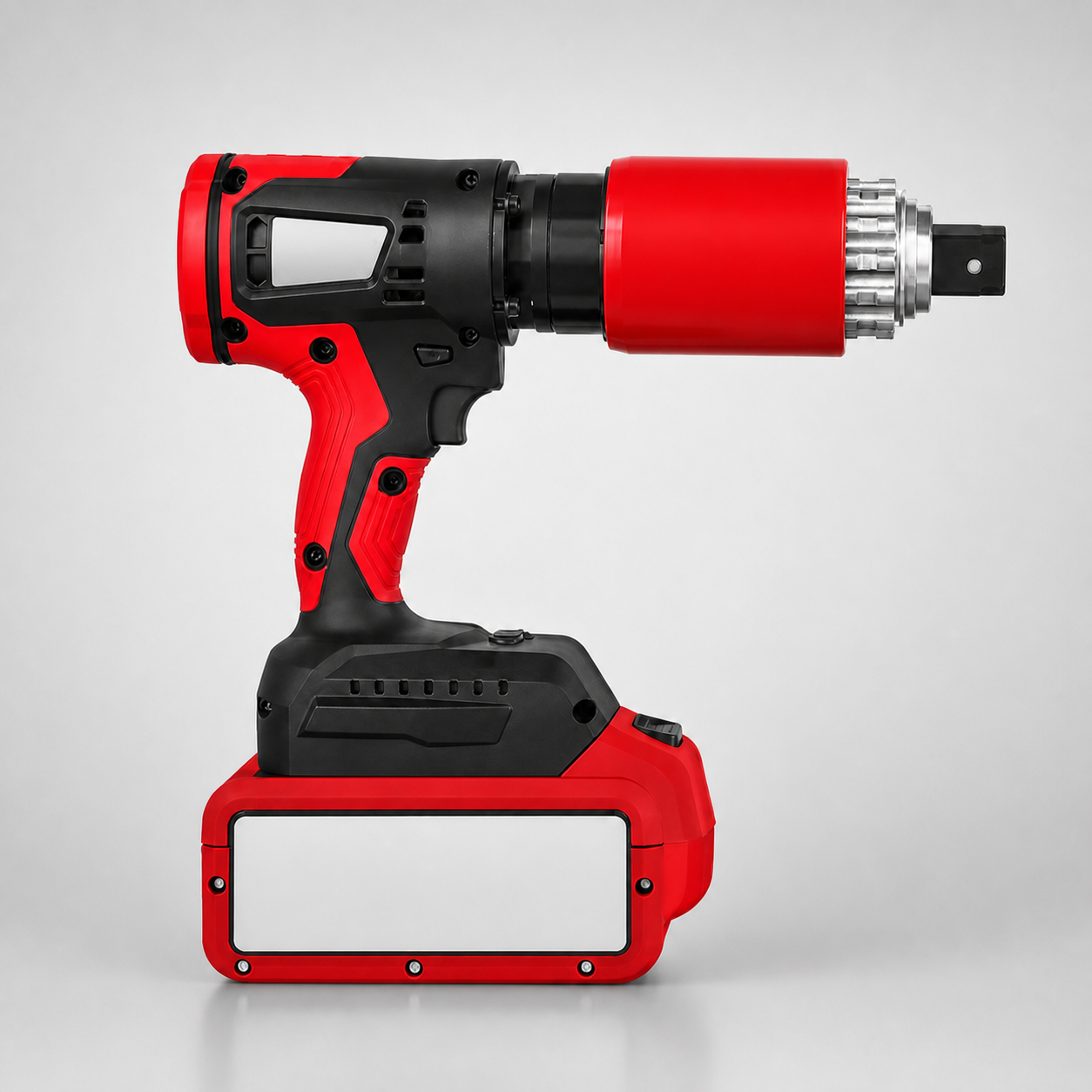

Lithium Electric Torque Wrench

1.Latest high-voltage and high-torque brushless motor .Max torque can be up to 4000Nm

Battery Torque Wrenches

Product categoryBattery Torque Wrenches

Model rangePL4000 – PL500

Drive Shaft(in)1 – 3/4

Torque Range(NM)800-4000 – 100-500

Ask an Engineer Download Datasheet

Overview

1.Latest high-voltage and high-torque brushless motor .Max torque can be up to 4000Nm 2.The output accuracy of ± 3% is ensured by the monitoring system 3.Built in multiple working modes.High strength planetary gear reducer,high torque and light weight. 4.Automatic released reaction arm 5.Optional Bluetooth and WIFI technology, support bluetooth and smart 6.Intuitive OLED display screen 7.Powered by 36V/4Ah large capacity lithium battery, with great durability 8.Optional backpack type large capacity battery pack,adapt to high strength and continuous bolting operation.

Features

Latest high-voltage and high-torque brushless motor .Max torque can be up to 4000Nm
The output accuracy of ± 3% is ensured by the monitoring system
Built in multiple working modes.High strength planetary gear reducer,high torque and light weight.
Automatic released reaction arm
Optional Bluetooth and WIFI technology, support bluetooth and smart
Intuitive OLED display screen
Powered by 36V/4Ah large capacity lithium battery, with great durability
Optional backpack type large capacity battery pack,adapt to high strength and continuous bolting operation.

Specifications

Product categoryBattery Torque Wrenches

Model rangePL4000 – PL500

Drive Shaft(in)1 – 3/4

Torque Range(NM)800-4000 – 100-500

Speed(turn/min)3.2 – 13.8

Weight(kg)7.3 – 4.7

Size A X B X CX D (mm)307 ×81 ×331 ×85 – 241 ×70 ×288 ×71

Technical Data

Technical table 1
Model | Drive Shaft(in) | Torque Range(NM) | Speed(turn/min) | Weight(kg) | Size A X B X CX D (mm)
PL4000 | 1 | 800-4000 | 3.2 | 7.3 | 307 ×81 ×331 ×85
PL3000 | 1 | 600-3000 | 3.2 | 7.3 | 307 ×81 ×331 ×85
PL2000 | 1 | 400-2000 | 6 | 5.6 | 269 ×70 ×288 ×71
PL1400 | 3/4 | 280-1400 | 6 | 5.5 | 269 ×70 ×288 ×71
PL700 | 3/4 | 140-700 | 13.8 | 4.7 | 241 ×70 ×288 ×71
PL500 | 3/4 | 100-500 | 13.8 | 4.7 | 241 ×70 ×288 ×71
