Hydraulic Pumps

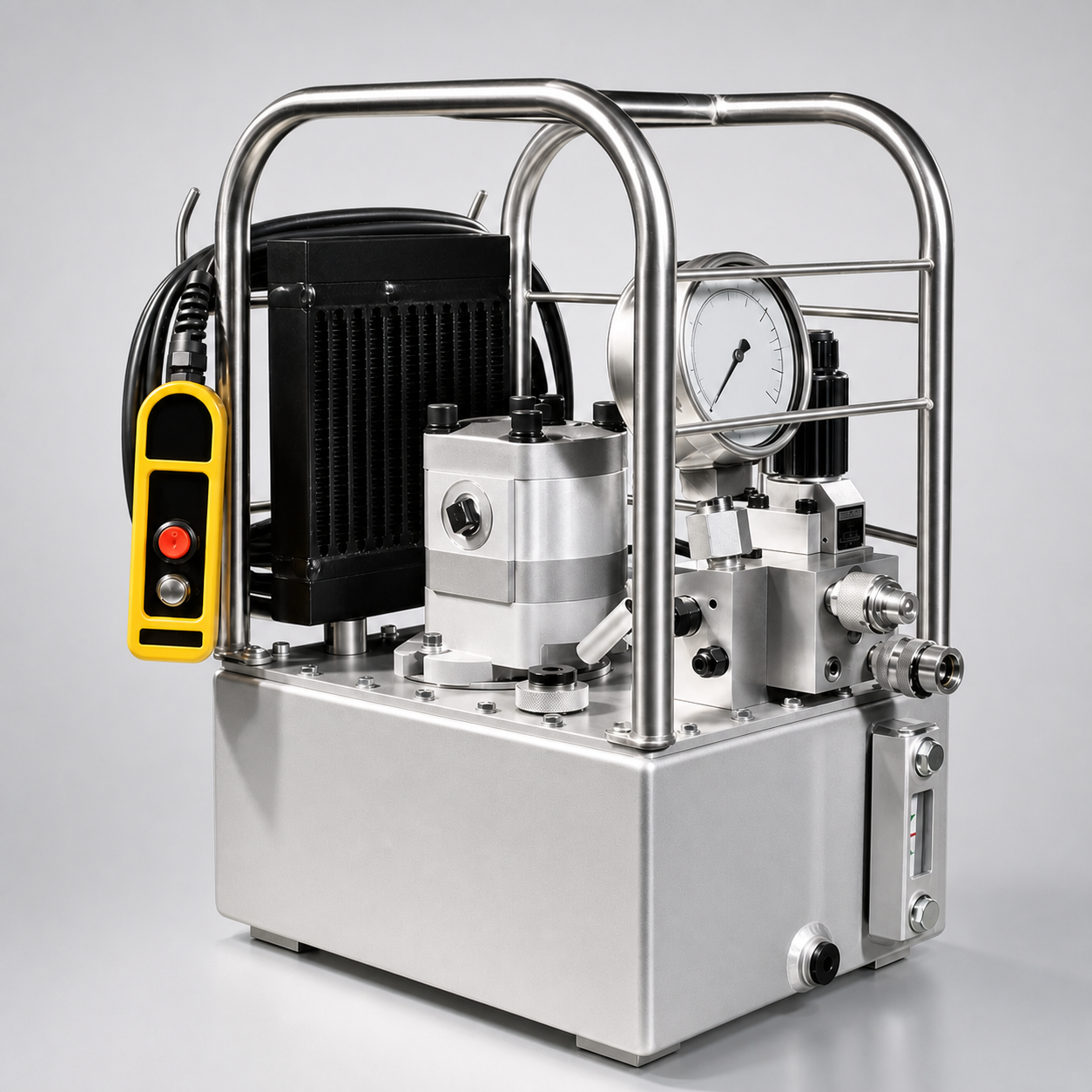

Hydraulic Motor Pump

Hydraulic Motor Pump

Hydraulic Motor Pump

Hydraulic Motor Pump — Ergonomic remote pendant,

Hydraulic Pumps

Product categoryHydraulic Pumps

Model rangePY8042

ReservoirCapacity(L)7

MotorSize(KW)1.1

Ask an Engineer

Overview

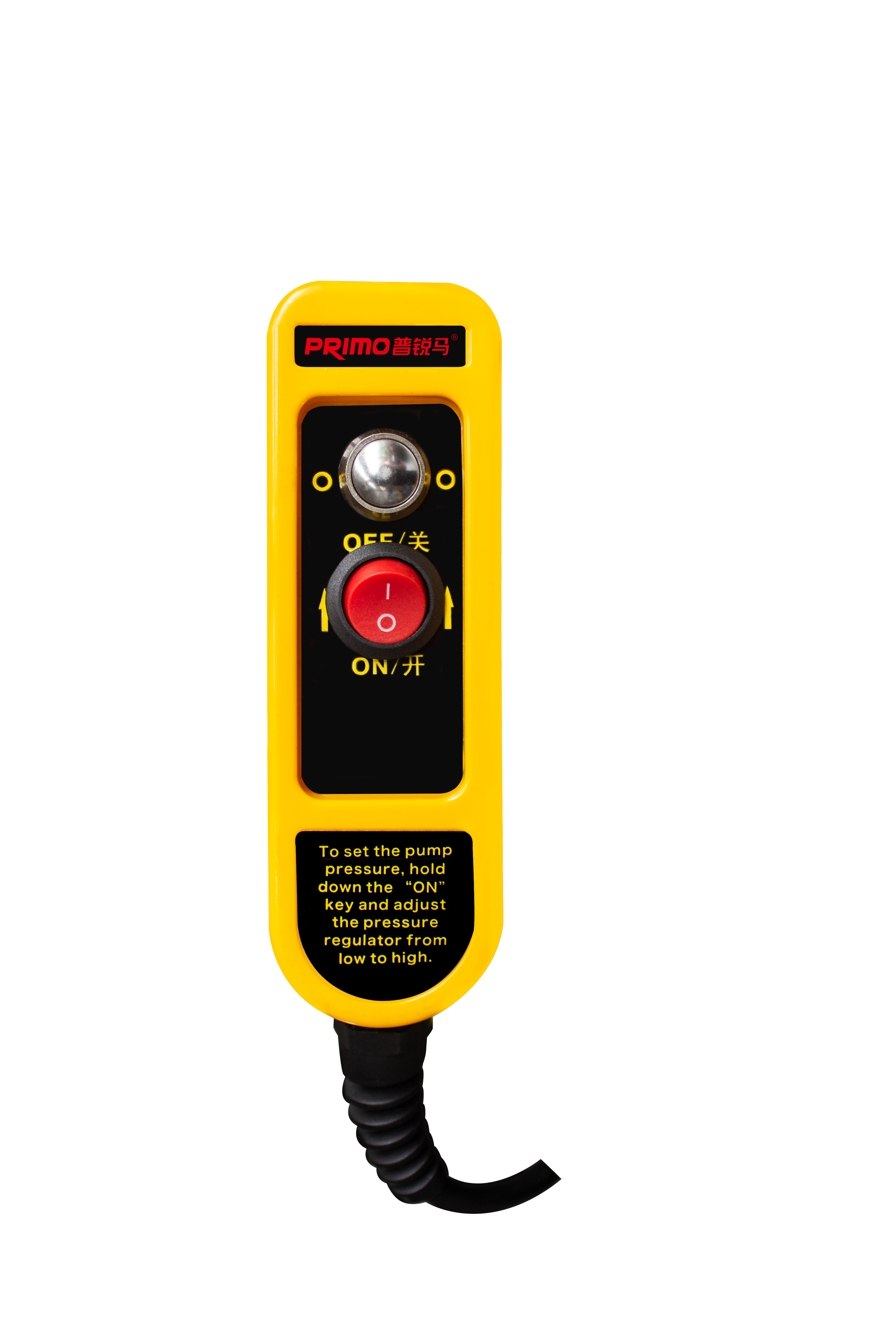

Ergonomic remote pendant, comfortable, durable

Features

Hydraulic wrench special pump, using integrated assembly, compact structure
With hydraulic motor as the power source, no power supply needed, suitable for hydraulic energy without power operating occasions
Remote control pendant for safety and easy operation
Easy to set target pressure, capable of pressure retention
Small size, light weight, simple structure
Supply both high and low oil pressure, large output
High performance oil cooler to ensure continuous work
Safety protection function, pump station automatic stop when abrupt pressure loss

Specifications

Product categoryHydraulic Pumps

Model rangePY8042

ReservoirCapacity(L)7

MotorSize(KW)1.1

SupplyDC24V/3A

Output Flow(L/min)8.0@0-6.5MPa,1.8@6.5-32MPa,0.85@32-70MPa

Max.WorkingPressure(MPa)70

Size(mm)A× B×C×D375×300×410×155

ControlLine(m)6

Technical Data

Technical table 1
Model | ReservoirCapacity(L) | MotorSize(KW) | Supply | Output Flow(L/min) | Max.WorkingPressure(MPa) | Size(mm)A× B×C×D | ControlLine(m) | Weight(kg)
PY8042 | 7 | 1.1 | DC24V/3A | 8.0@0-6.5MPa,1.8@6.5-32MPa,0.85@32-70MPa | 70 | 375×300×410×155 | 6 | 18

FAQ

Which model should I select?

Provide fastener size, target torque or preload, available clearance and the application environment.

Can the configuration be customized?

Yes. Tooling, reaction arrangements, hoses, pumps and controls can be matched to the project.
