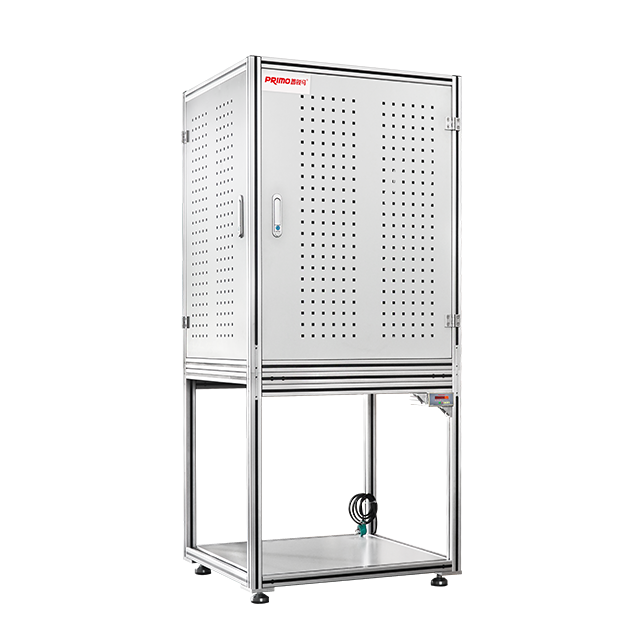

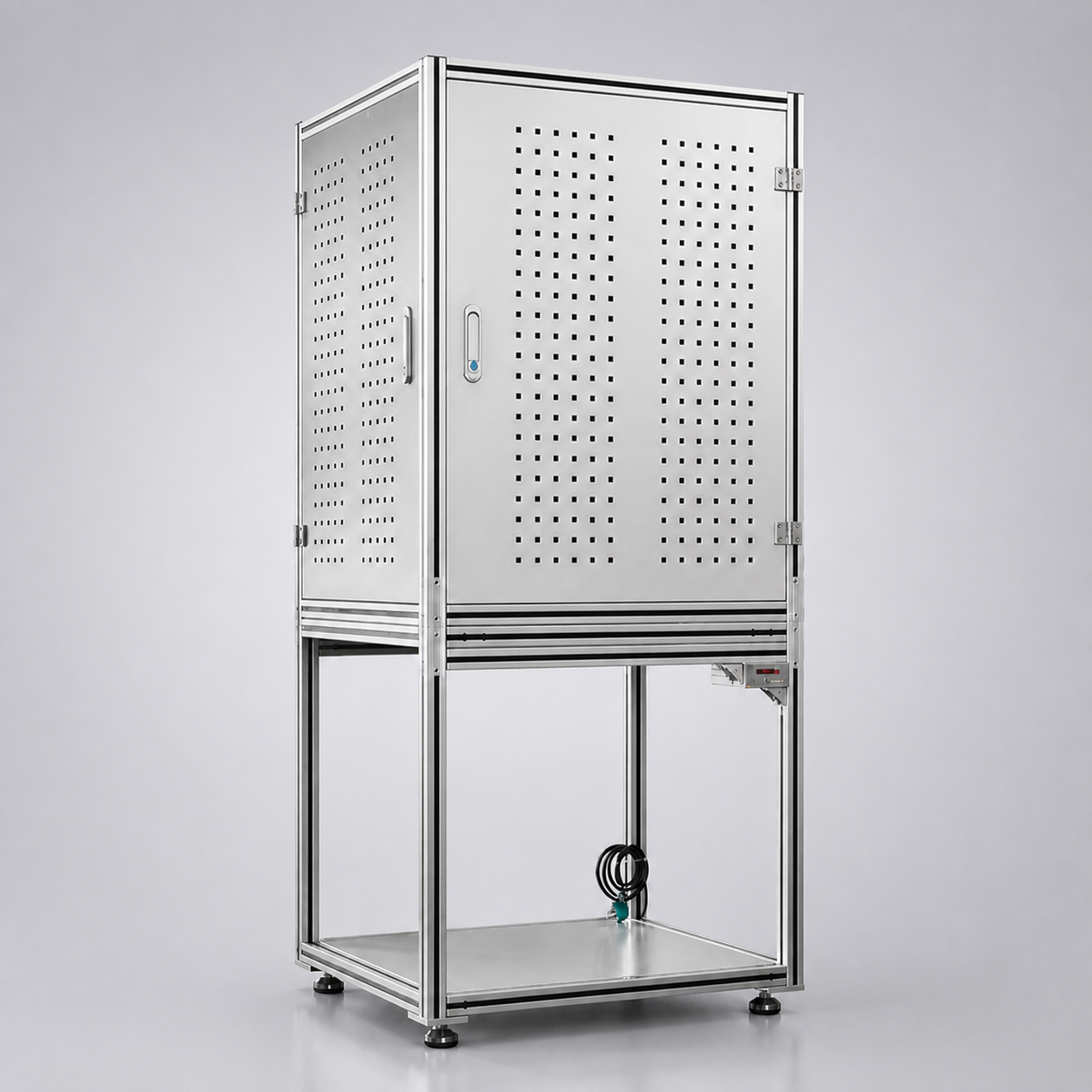

Frame Type Tension Test

Suitable for the testing of most hydraulic bolt tensioners

Tension Test

Product categoryTension Test

Model rangeBDY1000, BDY3000

Range(KN)100- 1000 – 100-3000

Accuracy(FS)≤0.5%

Ask an Engineer

Overview

Suitable for the testing of most hydraulic bolt tensioners Integrated design, plug-in working mode, suitable for field fixed detection Wide range, friendly interface, strong and durable, safe and reliable

Features

Suitable for the testing of most hydraulic bolt tensioners
Integrated design, plug-in working mode, suitable for field fixed detection
Wide range, friendly interface, strong and durable, safe and reliable
One-button startup detection, real-time display, without secondary selection

Specifications

Product categoryTension Test

Model rangeBDY1000, BDY3000

Range(KN)100- 1000 – 100-3000

Accuracy(FS)≤0.5%

Linear(FS)±0.05%

Repeat(FS)0.03%

Size A × B × C (mm)800 ×720 × 1800

Technical Data

Technical table 1
Model | Range(KN) | Accuracy(FS) | Linear(FS) | Repeat(FS) | Size A × B × C (mm)
BDY1000 | 100- 1000 | ≤0.5% | ±0.05% | 0.03% | 800 ×720 × 1800
BDY3000 | 100-3000
