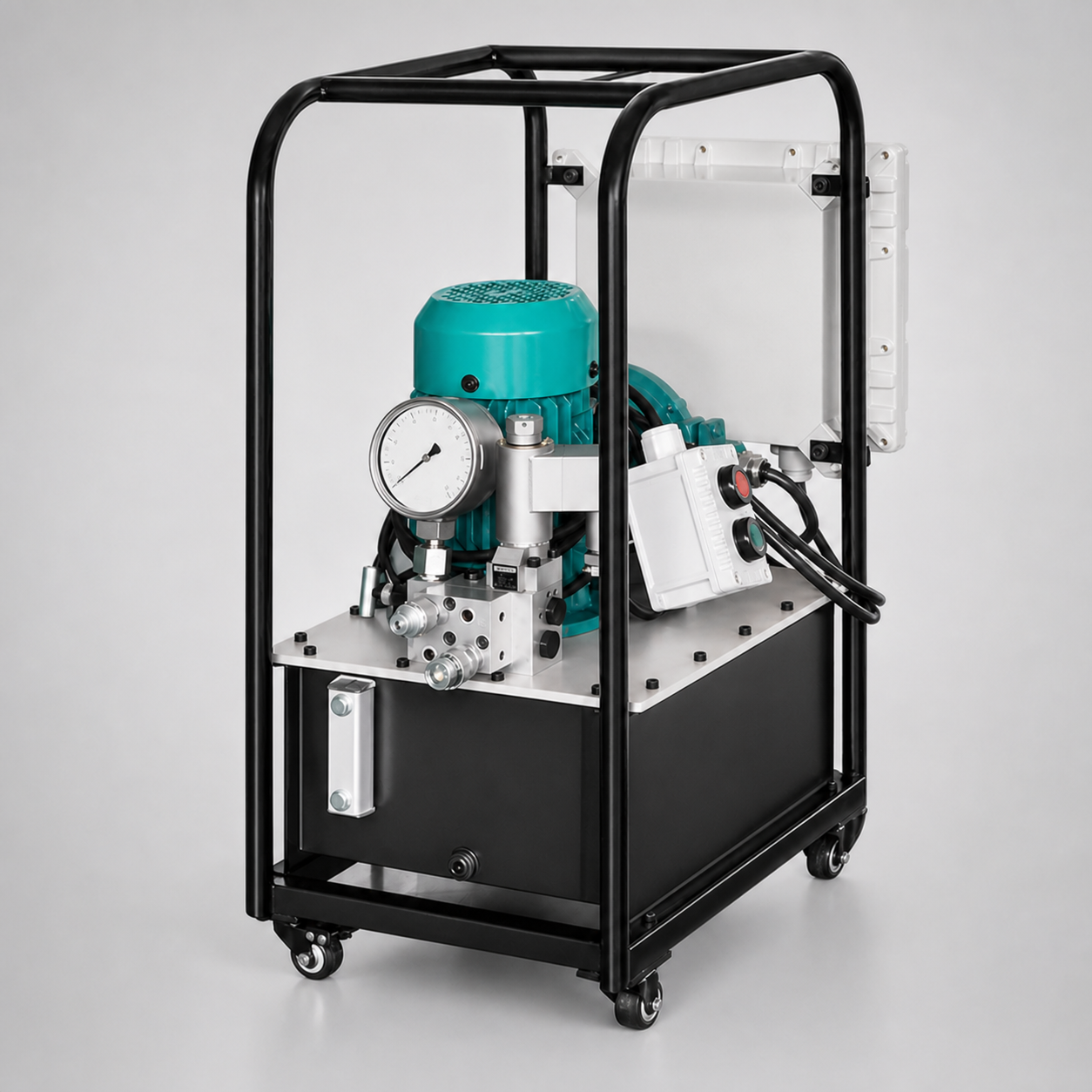

Explosion Proof Electric-Hydraulic Pump

EX d II BT4 three-phase motor applicable to explosion proof environment.

Hydraulic Pumps

Product categoryHydraulic Pumps

Model rangePEX14042P1, PEX14042P3, PEX14042Q1, PEX14042Q3

ReservoirCapacity(L)14 – 4

MotorSize(KW)1.1

Ask an Engineer

Overview

EX d II BT4 three-phase motor applicable to explosion proof environment. Large torque output and high efficiency Electric control system adopts EXd II BT4 explosion proof electromagnetic starter

Features

EX d II BT4 three-phase motor applicable to explosion proof environment.
Large torque output and high efficiency
Electric control system adopts EXd II BT4 explosion proof electromagnetic starter
Advanced three stage flow with different flow and transmission torque to achieve the best match
Manual reversing valve, easy to operate
One pair quick coupling for standard configuration
Please specify in the order for two or four pairs of quick couplings

Specifications

Product categoryHydraulic Pumps

Model rangePEX14042P1, PEX14042P3, PEX14042Q1, PEX14042Q3

ReservoirCapacity(L)14 – 4

MotorSize(KW)1.1

Supply380V/50Hz/three-phase

Output Flow(L/min)8.0@0-6.5MPa,1.8@6.5-32MPa,0.85@32-70MPa

Max.WorkingPressure(MPa)70

Size(mm)A× B×C475×335×620

Weight(kg)55

Technical Data

Technical table 1
Model | ReservoirCapacity(L) | MotorSize(KW) | Supply | Output Flow(L/min) | Max.WorkingPressure(MPa) | Size(mm)A× B×C | Weight(kg) | PortNo.
PEX14042P1 | 14 | 1.1 | 380V/50Hz/three-phase | 8.0@0-6.5MPa,1.8@6.5-32MPa,0.85@32-70MPa | 70 | 475×335×620 | 55 | 2
PEX14042P3 | 4
PEX14042Q1 | 14 | 1.1 | 380V/50Hz/three-phase | 8.0@0-6.5MPa,1.8@6.5-32MPa,0.85@32-70MPa | 70 | 475×335×620 | 55 | 2
PEX14042Q3 | 4
