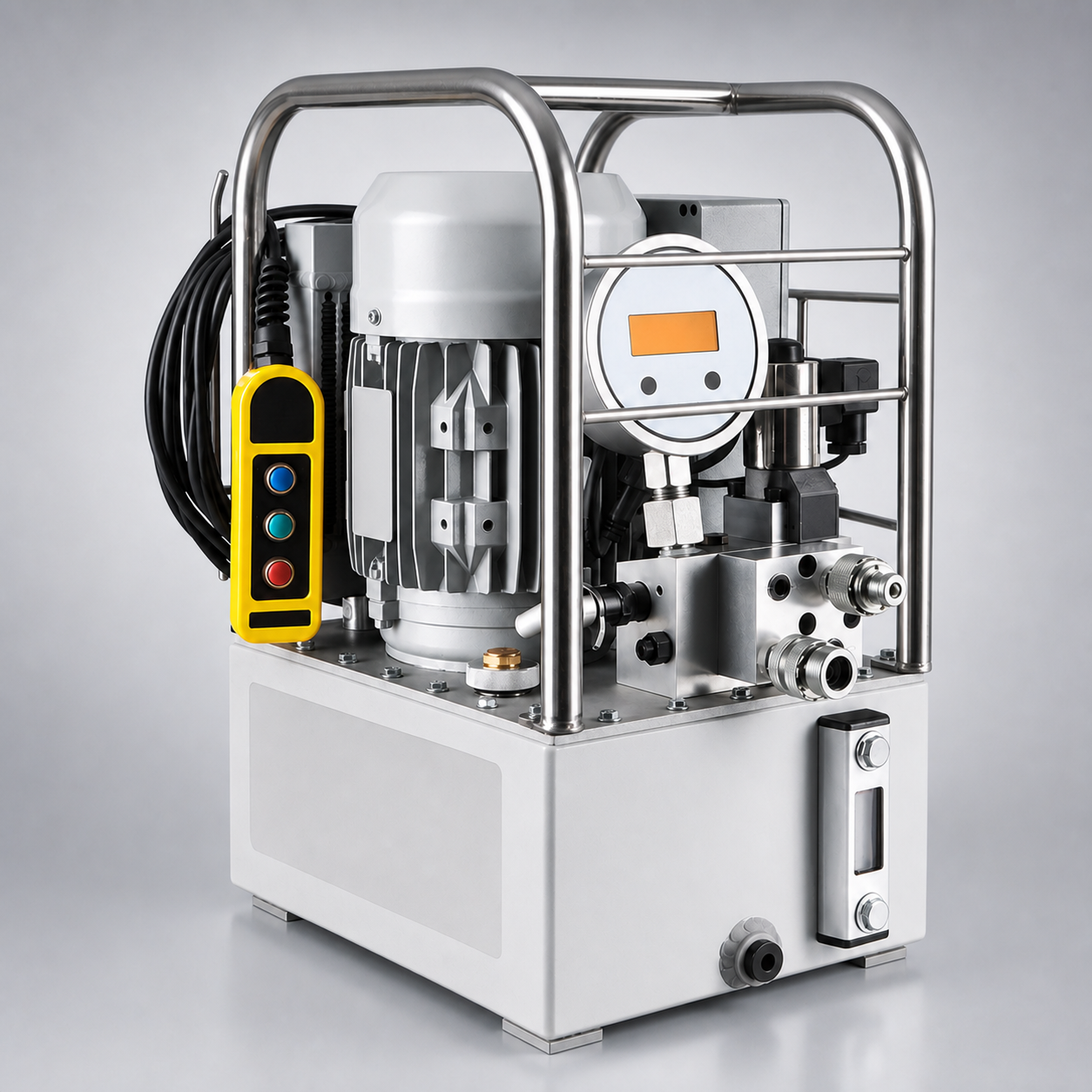

Digital Controlled Hydraulic Pump

The digital pressure gauge with built-in chip controls the reversing valve

Hydraulic Pumps

Product categoryHydraulic Pumps

Model rangePK1, PK2, PK3, PK4

Reservoir Capacity(L)7.6 – 4

Power(KW)1.1 – /

Ask an Engineer

Overview

The digital pressure gauge with built-in chip controls the reversing valve Program controlled quick reversing of different pressure output High speed and high efficiency, more than 50% efficiency improment than regular automated pumps

Features

The digital pressure gauge with built-in chip controls the reversing valve
Program controlled quick reversing of different pressure output
High speed and high efficiency, more than 50% efficiency improment than regular automated pumps
One button operation, only press one button to finish the tightening and loosing job
High-power brushless electric motor, maintenance-free
Powerful oil cooler starts up automatically when oil tempereture is up to 35 ° c, making sure continuous operation
Manual or auto-cycle model can be shifted by needs, convenient for operation
One pair of quick connectors is available for standard configuration. Please specify in the order for two or four pairs of quick connectors
Solid aluminum alloy electrical box

Specifications

Product categoryHydraulic Pumps

Model rangePK1, PK2, PK3, PK4

Reservoir Capacity(L)7.6 – 4

Power(KW)1.1 – /

Supply220V/50Hz/ single phase

Output Flow(L/min)8.0@0-6.5MPa, 1.8@6.5-32MPa, 0.85@32-70MPa

Max. Pressure MPa)70

Size(mm) A × B ×C ×D375 ×300 ×410 × 155

Control Line (m)6

Technical Data

Technical table 1
Model | Reservoir Capacity(L) | Power(KW) | Supply | Output Flow(L/min) | Max. Pressure MPa) | Size(mm) A × B ×C ×D | Control Line (m) | Weight(kg) | Port.No | Auto heat
PK1 | 7.6 | 1.1 | 220V/50Hz/ single phase | 8.0@0-6.5MPa, 1.8@6.5-32MPa, 0.85@32-70MPa | 70 | 375 ×300 ×410 × 155 | 6 | 25 | 2 | /
PK2 | 2 | Yes
PK3 | 4 | /
PK4 | 4 | Yes
