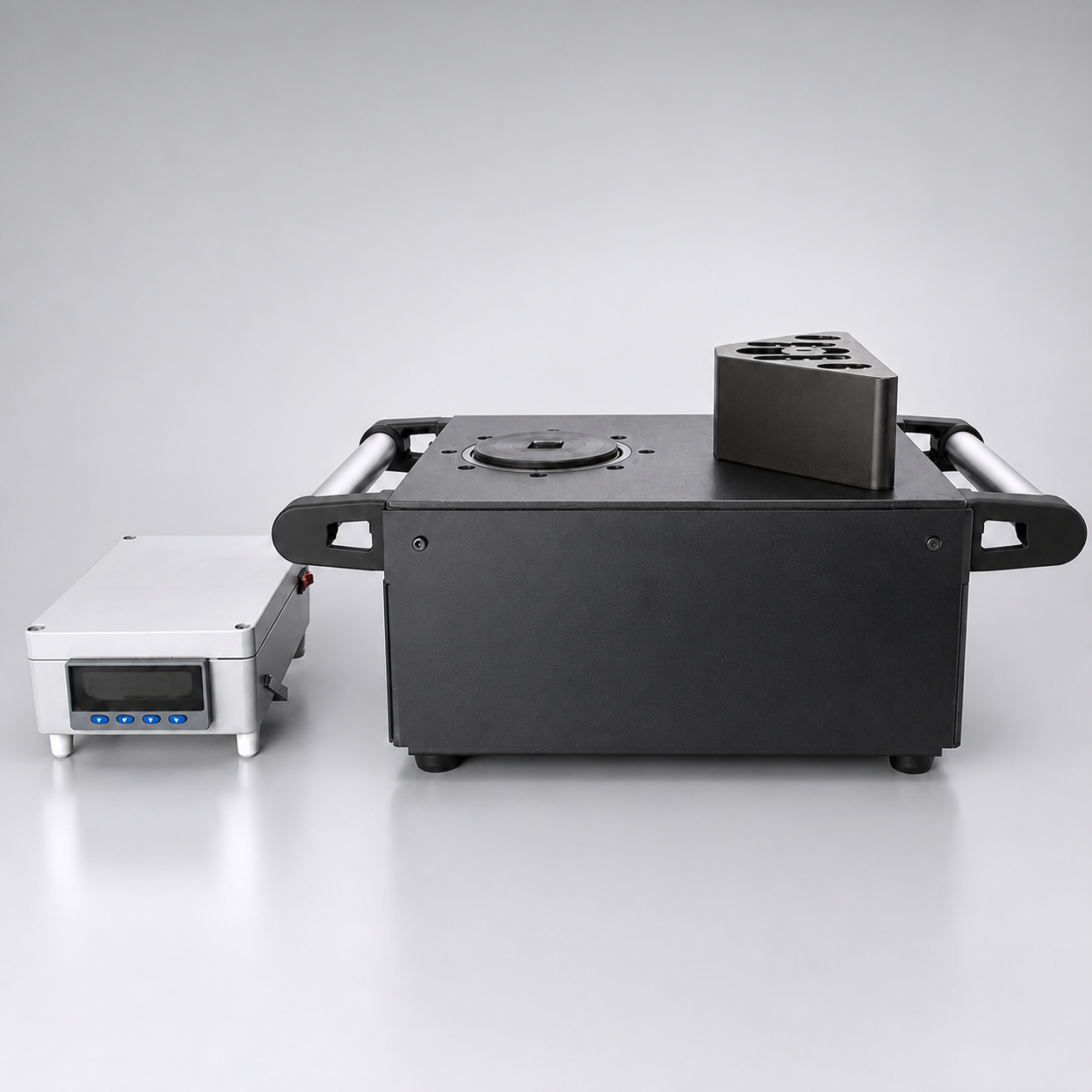

Bench-Top Torque Test

Suitable for testing most hydraulic torque wrenches

Torque Test

Product categoryTorque Test

Model rangeNJY500, NJY1000, NJY2000, NJY3000

Range(N.M)0- ±5000 – 0- ±30000

Accuracy(FS)≤0.5%

Ask an Engineer

Overview

Suitable for testing most hydraulic torque wrenches Split design, plug-in working mode, suitable for field fixed detection Wide range, friendly interface, solid and durable

Features

Suitable for testing most hydraulic torque wrenches
Split design, plug-in working mode, suitable for field fixed detection
Wide range, friendly interface, solid and durable
One-button startup detection, real-time display, no secondary selection operation

Specifications

Product categoryTorque Test

Model rangeNJY500, NJY1000, NJY2000, NJY3000

Range(N.M)0- ±5000 – 0- ±30000

Accuracy(FS)≤0.5%

Nonlinear(FS)±0.05%

Repeatability(FS)0.03%

Size A × B × C (mm)540 ×304 ×270

Technical Data

Technical table 1
Model | Range(N.M) | Accuracy(FS) | Nonlinear(FS) | Repeatability(FS) | Size A × B × C (mm)
NJY500 | 0- ±5000 | ≤0.5% | ±0.05% | 0.03% | 540 ×304 ×270
NJY1000 | 0- ± 10000
NJY2000 | 0- ±20000
NJY3000 | 0- ±30000
